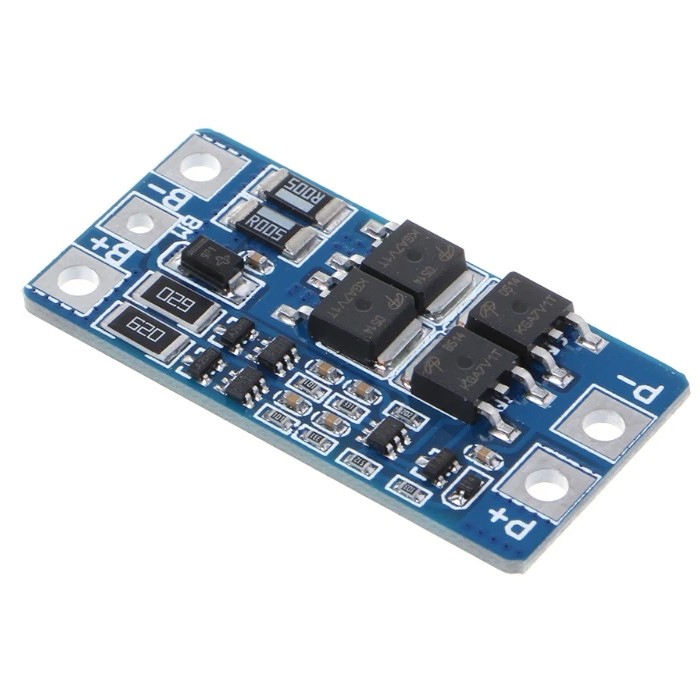

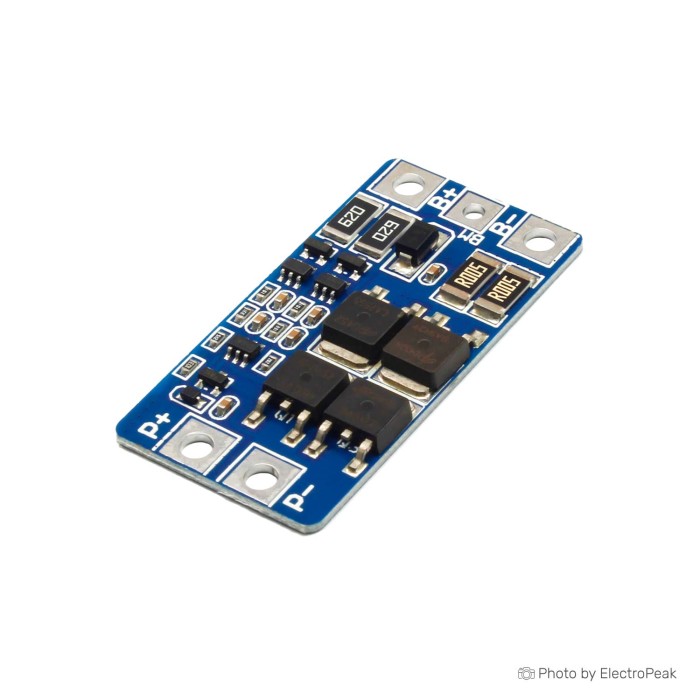

2S Lithium Battery Charging Protection Board -7.4V, 10A
$1.2500
In stock
SKU
BAT-03-073
Volume discounts:
- +50 5 % $1.1900
- +100 7 % $1.1600
- +300 10 % $1.1300
- +500 12 % $1.1000
- +1000 14 % $1.0700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
6S Lithium Battery Charging Protection Board -25.2V 15A Previous
The 2S Lithium Battery Charging Protection Board is designed to provide reliable protection for 2-series lithium battery packs. It safeguards against overcharging, over-discharging, and overcurrent conditions to ensure the safety and longevity of the battery packs. With support for a maximum voltage of 7.4V and a continuous discharge current of 10A, this protection board is suitable for various applications including portable devices, power tools, and backup power systems.
Specifications of 2S Lithium Battery Charging Protection Board - 7.4V, 10A
- Upper limit of discharge working current: 10A
- Upper limit of discharge instantaneous current: 20A
- Battery overcharge voltage range: 4.25V
- Battery over-discharge voltage range: 2.9V
- Quiescent Current:<10uA
- Charging voltage: 8.4~9.0V
- Product Size: 46.7x23.3x3.15mm
- Features: Overcharge, over-discharge, over-current, short-circuit protection
| Cell Count | 2 |
|---|---|
| Nominal Voltage (V) | 7.4V |
| Max Current (A) | 10A |
| Cell Balancing | No |
| Protection | Overcharge protection,Over-discharge protection,Over-current protection,Short-circuit protection |
| Board Dimensions (mm) | 46.7x23.3x3.15 |
| Application | Portable devices,Power tools,Backup power systems,Small electronic devices |
| Quiescent Current | <10uA |
| Charging Voltage (Pack) | 8.4~9.0V |
