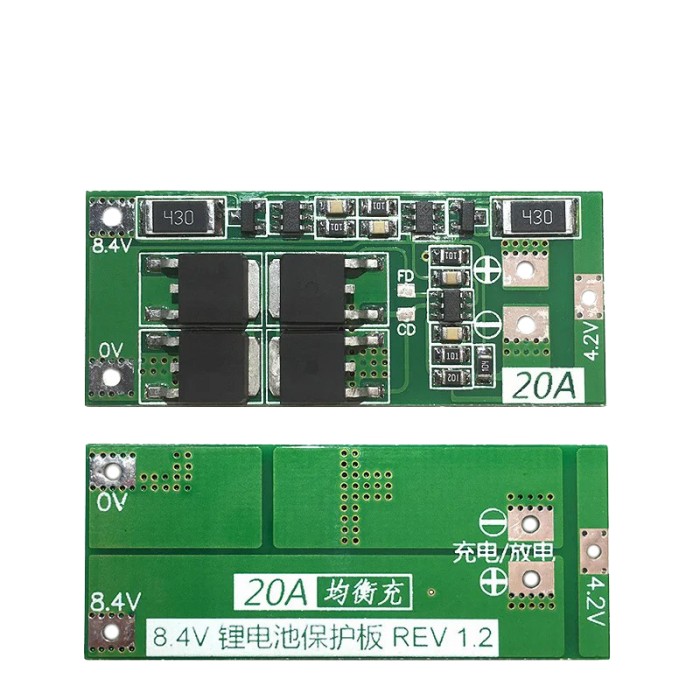

2S Lithium Battery Charging Protection Board - 7.4V, 20A
$1.7500
In stock
SKU
BAT-03-076
Volume discounts:
- +50 5 % $1.6700
- +100 7 % $1.6300
- +300 9 % $1.5900
- +500 11 % $1.5600
- +1000 13 % $1.5200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2S Lithium Battery Charging Protection Board -7.4V, 10A Previous
The 2S Lithium Battery Charging Protection Board is designed to offer reliable protection for 2-series lithium battery packs. It safeguards the batteries by preventing overcharging, over-discharging, and overcurrent conditions. With support for a maximum voltage of 7.4V and a continuous discharge current of 20A, this protection board is ideal for a wide range of applications including portable devices, power tools, and backup power systems.
Specifications of 2S Lithium Battery Charging Protection Board - 7.4V, 20A
- Upper limit of discharge working current: 20A
- Upper limit of discharge instantaneous current: 22A
- Battery overcharge voltage: 4.25V
- Battery over-discharge voltage: 2.5V
- Quiescent Current:<18uA
- Charging voltage: 8.4~9.0V
- Product Size: 45x15x3.5mm
- Features: Overcharge, over-discharge, over-current, short-circuit protection
| Cell Count | 2 |
|---|---|
| Nominal Voltage (V) | 7.4V |
| Max Current (A) | 20A |
| Protection | Overcharge protection,Over-discharge protection,Overcurrent protection,Short-circuit protection |
| Board Dimensions (mm) | 45x15x3.5 |
| Application | Portable devices,Power tools,Backup power systems |
| Quiescent Current | <18uA |
| Charging Voltage (Pack) | 8.4~9.0V |
