2004 5V I2C Character LCD Display Module - Green Backlight
$3.7500
In stock
SKU
LCD-01-126
Volume discounts:
- +25 4 % $3.5900
- +100 6 % $3.5200
- +300 8 % $3.4400
- +500 10 % $3.3600
- +1000 13 % $3.2800
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0.96 inch 80x160 IPS LCD Display Module - SPI Interface Previous

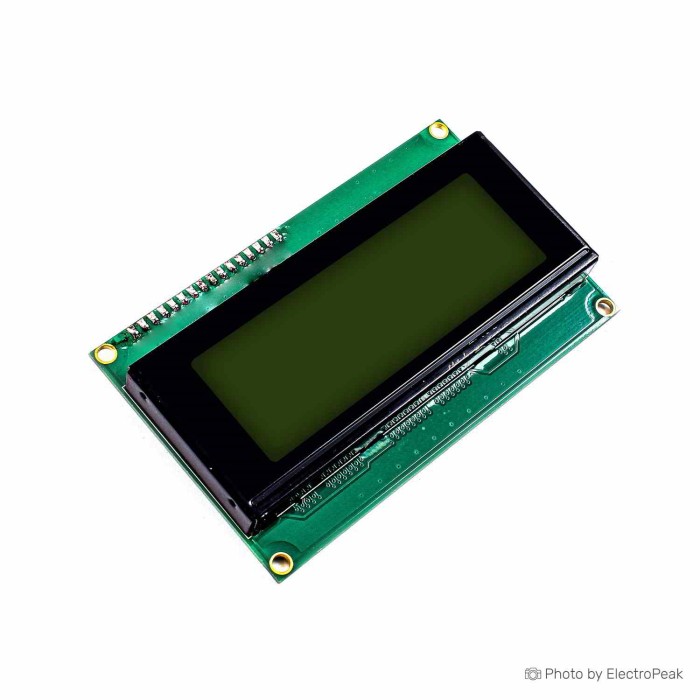

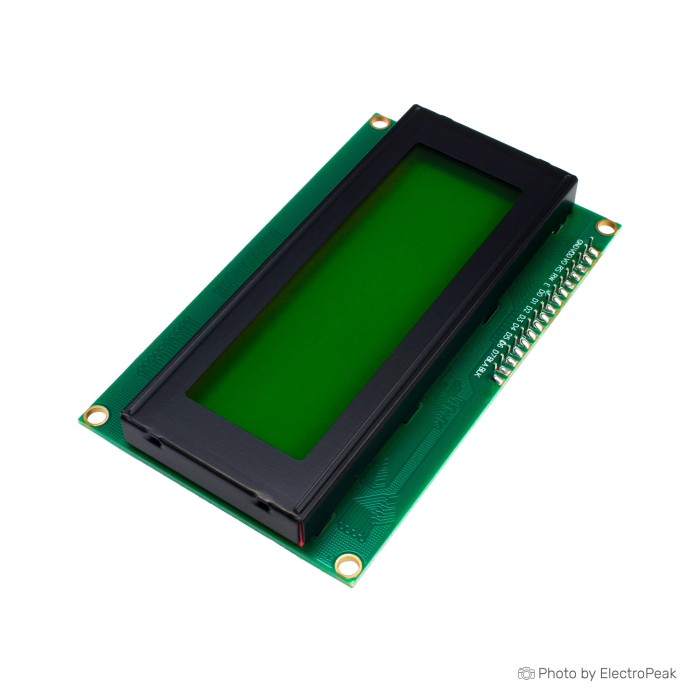

The 2004 5V I2C Character LCD Display Module is a character LCD module for text-based display projects. It uses an I2C interface with the PCF8574T I/O expander to simplify wiring and reduce GPIO usage. The display provides 20 characters across 4 rows in a 20x4 format. Green backlight improves readability in low-light conditions. It supports standard ASCII characters and symbols, and contrast can be adjusted with a potentiometer.
Features of 2004 5V I2C Character LCD Display Module - Green Backlight
- 20x4 character display
- I2C communication interface
- PCF8574T I/O expander
- Green backlight
- ASCII character support
- Potentiometer contrast adjustment
Specifications of 2004 5V I2C Character LCD Display Module - Green Backlight
- Display type: Character-type LCD (Liquid Crystal Display)
- Display size: 20 characters per row, 4 rows (20x4)
- Interface: I2C communication (IIC) with the PCF8574T I/O expander
- I2C address: 0x20
- Supply voltage: 5V
- Backlight: Green
- Character set: Standard ASCII characters and symbols
- Character color: White
- Contrast adjustment: Potentiometer
- Dimensions: 98mm x 60mm x 12mm
- Weight: 76 g
How to Use 2004 5V I2C Character LCD Display Module - Green Backlight
- Connect the module using the I2C interface.
- Apply 5V supply voltage.
- Adjust the contrast with the potentiometer.
More Info
- Suitable for text display applications.
- Uses I2C to minimize GPIO requirements.
| Model | 2004 |
|---|---|
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
| Display Size | 20x4 |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 20x4 Characters |
| Display Driver | PCF8574T |
| Display Interface | I2C |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | Green LED |
| Operating Voltage (V) | 5V |
| Pins | 4 |
| Dimensions (mm) | 98x60x12 mm |
