0.96 inch 80x160 IPS LCD Display Module - SPI Interface
$1.7500
In stock
SKU
LCD-01-132
Volume discounts:
- +50 4 % $1.6800
- +100 6 % $1.6400
- +300 8 % $1.6100
- +500 10 % $1.5700
- +1000 12 % $1.5400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
1.3 inch 240x240 IPS LCD Display Module - SPI Interface Previous

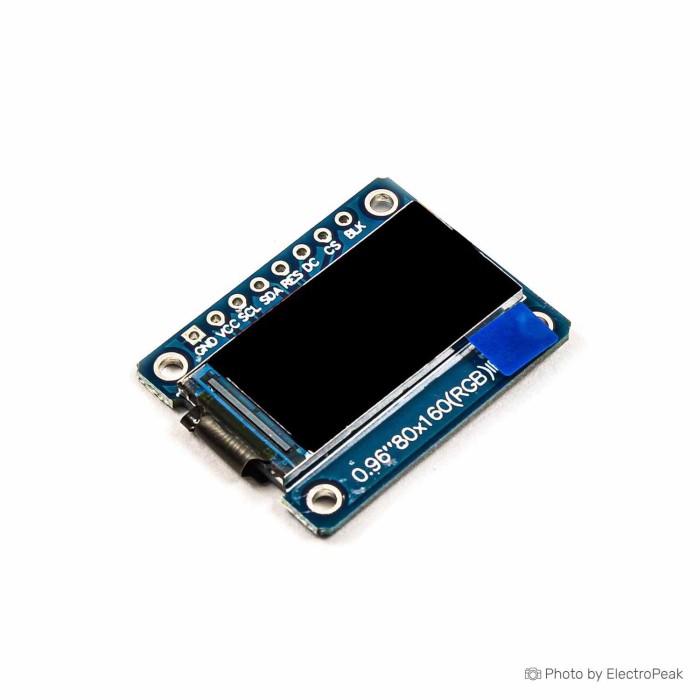

The 0.96-inch full-color IPS LCD module with SPI interface is a compact, high-resolution display perfect for embedded and portable applications. It offers a resolution of 80x160 pixels and features the ST7735S controller. Thanks to its 85-degree wide viewing angle and 300 cd/m² brightness, it delivers clear visuals with a contrast ratio of 500:1. This display is a great choice for robotics, handheld systems, and any project that requires a small and vivid screen.
Specifications of 0.96 inch Full-Color IPS LCD Display Module with SPI Interface
- Display Type: IPS LCD
- Screen Size: 0.96 inches
- Resolution: 80x160 pixels
- Interface: 4-wire SPI
- Controller: ST7735S
- Viewing Angle: 85 degrees in all directions
- Contrast Ratio: 500:1 (typical)
- Brightness: 300 cd/m² (typical)
- Response Time: 20 ms
- Module Dimensions: 30x24 mm (with folded FPC)
- Active Area: 21.70x10.80 mm
- Pixel Size: 0.135x0.174 mm
- Number of Colors: 4K / 65K / 262K
- Sunlight Readable: No
- Operating Temperature: -20 to +70°C
- Storage Temperature: -30 to +80°C
- Touch Panel Support: Optional
| Display Size | 0.96 inch |
|---|---|
| Display Size Range | 0.99 inch and smaller |
| Display Resolution | 80x160 |
| Display Driver | ST7735S |
| Display Interface | SPI |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Viewing Angle (°) | 85 degrees from all directions |
| Operating Temp (°C) | -20 to +70 °C |
| Dimensions (mm) | 21.70x10.80 mm |
| Brightness | 300 Cd/m2 (Typ) |
