20~400Hz ,0~5A AC Overcurrent Protection Sensor Module
$1.7500
In stock
SKU
SEN-04-061
Volume discounts:
- +50 4 % $1.6800
- +100 6 % $1.6400
- +300 8 % $1.6100
- +500 10 % $1.5700
- +1000 12 % $1.5400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
INA3221 Tripple Channel DC Current Voltage Sensor Module -I2C Previous

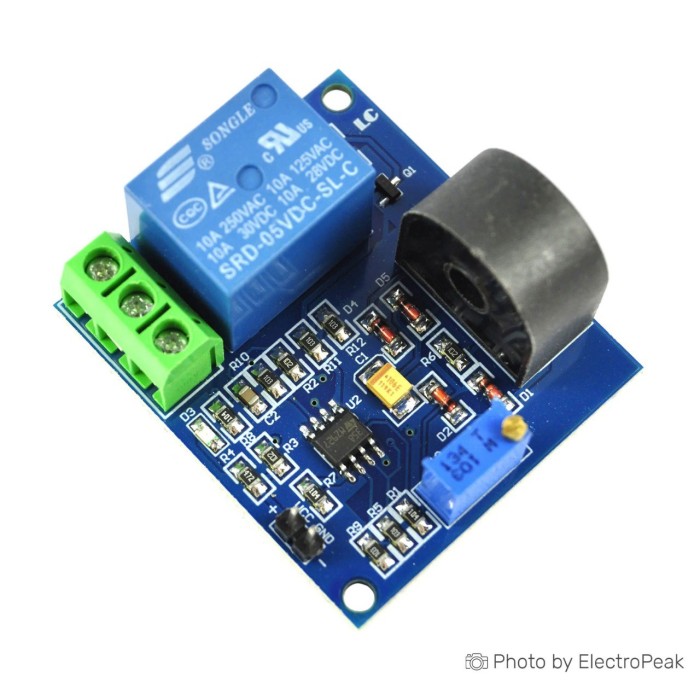

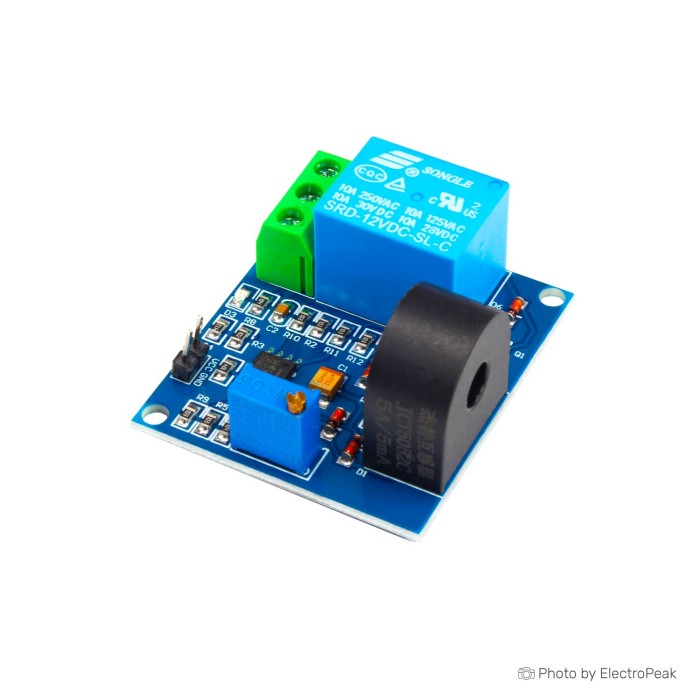

The 20~400Hz 0~5A AC Overcurrent Protection Sensor Module is designed for overcurrent detection and protection in AC circuits. It supports a wide frequency range and is suitable for electrical protection tasks in AC systems. The module is built for compact integration in different setups. It is intended for use in applications that require current monitoring and protection within the specified range.
Features of 20~400Hz 0~5A AC Overcurrent Protection Sensor Module - 12V DC
- AC overcurrent protection
- Wide frequency range support
- Compact module design
- Current detection for AC circuits
Specifications of 20~400Hz 0~5A AC Overcurrent Protection Sensor Module - 12V DC
- Operating Voltage: 12V DC
- Current Range: 0 to 5A AC
- Frequency Range: 20 to 400Hz
- Voltage Current Detection Sensor: AC 5V-22V
- Dimensions: 44x38x35mm
- Maximum Detection Wire Diameter: 5.2mm
How to Use 20~400Hz 0~5A AC Overcurrent Protection Sensor Module - 12V DC
- Install the module in the AC circuit.
- Connect it within the specified operating conditions.
- Use it for overcurrent detection and protection.
More Info
- Designed for AC circuits.
- Intended for electrical protection applications.
| Operating Voltage (V) | 12V DC |
|---|---|
| Dimensions (mm) | 44x38x35mm |
| Bandwidth | 20 to 400Hz |
| Current Range (A) | 0 to 5A AC |
| Voltage Range (V) | 5V to 22V AC |
| Parameters | Current |
