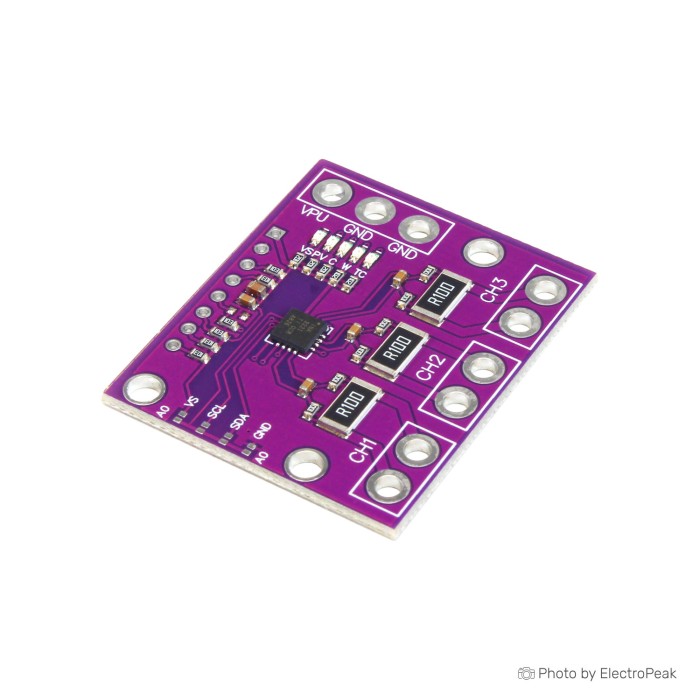

INA3221 Tripple Channel DC Current Voltage Sensor Module -I2C
$0.7800
In stock
SKU
SEN-04-060
Volume discounts:
- +100 1 % $0.7700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
AC Voltmeter & Ammeter with Digital Display Previous
The INA3221 Triple Channel DC Current Voltage Sensor Module is a compact sensor module for monitoring voltage and current on three independent channels. It uses the I2C interface for straightforward connection to microcontrollers and embedded systems. This module supports simultaneous voltage and current measurement for each channel. It is suitable for battery management systems, power supply monitoring, and electronic projects.
Features of INA3221 Triple Channel DC Current Voltage Sensor Module - I2C
- Three independent channels
- Voltage and current measurement
- I2C communication
- Configurable I2C address
- Low current consumption
Specifications of INA3221 Triple Channel DC Current Voltage Sensor Module - I2C
- Sensor chip: INA3221
- Channels: 3 independent channels for voltage and current measurement
- Operating voltage: 2.7V to 5.5V DC
- Current consumption: <1mA
- Input voltage range: 0V to 26V per channel
- Communication interface: I2C
- I2C address: Configurable via address pins
- Dimensions: 38x32mm
How to Use INA3221 Triple Channel DC Current Voltage Sensor Module - I2C
- Connect the module to a compatible microcontroller or embedded system through I2C.
- Set the I2C address using the address pins if needed.
- Use the module to monitor voltage and current on each channel.
More Info
- Designed for battery management systems.
- Suitable for power supply monitoring.
- Useful for real-time power consumption monitoring in electronic projects.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.7V to 5.5V DC |
| Operating Current (mA) | <1mA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 38x32mm |
| Mounting Type | Screw holes |
| Output Type | I2C |
| Voltage Range (V) | 0V to 26V per channel |
| Material | PCB |
| Model | INA3221 |
| Channels | 3-channel |
| Display Type | None |
| Parameters | Current, Voltage |
| Protocols | I2C |
