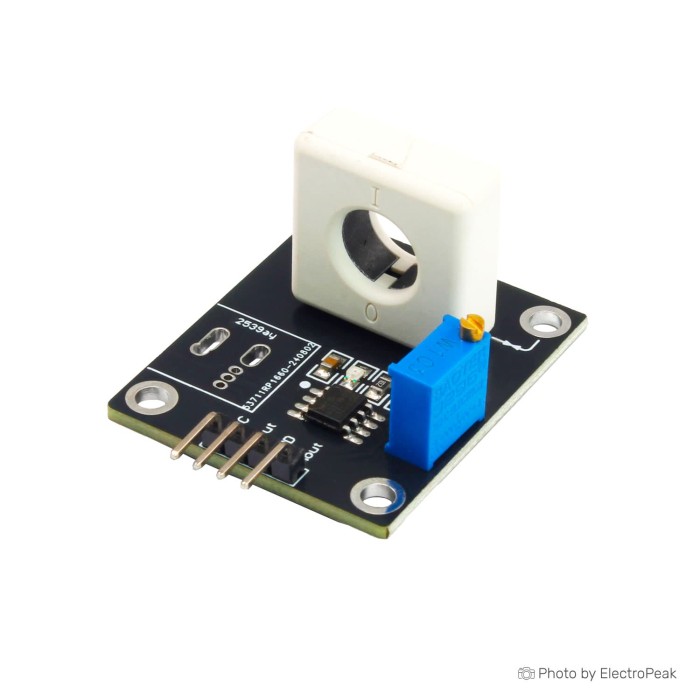

WCS1600/WCS1700/WCS1800 Hall Current Sensor Module
SAVE
As low as $6.9500
In stock
Only %1 left
SKU
SEN-04-062
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
20~400Hz ,0~5A AC Overcurrent Protection Sensor Module Previous
The WCS1600/WCS1700/WCS1800 Hall Current Sensor Module is a high-precision, reliable module designed for measuring AC and DC currents. Utilizing the Hall effect principle, it provides accurate current measurements with galvanic isolation, making it ideal for a wide range of applications including power monitoring, battery management systems, and industrial control. Its compact design and ease of integration make it a valuable component for both DIY enthusiasts and professional engineers.
Specifications of WCS1600/WCS1700/WCS1800 Hall Current Sensor Module:
- Operating Voltage: 3~5V, 5V recommended.
- Detection current range: 0-35A/0-70A/0-100A
- Output Signal: Analog voltage proportional to the measured current
- Sensitivity: 33mV/A
- Isolation Voltage: 4000V RMS
- Operating Temperature: -20°C to 85°C
- Dimensions: 31x37mm
- Applications: Ideal for power monitoring, battery management systems, motor control, and industrial automation
Datasheet of WCS1600/WCS1700/WCS1800 Hall Current Sensor Module:
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3V to 5V (5V recommended) |
| Operating Temp (°C) | -20°C to 85°C |
| Dimensions (mm) | 31x37 mm |
| Output Type | Analog Voltage |
| Resolution | 33mV/A |
| Current Range (A) | 0-35A / 0-70A / 0-100A |
| Isolation Voltage (V) | 4000V RMS |
| Material | PCB |
| Model | WCS1600/WCS1700/WCS1800 |
| Channels | 1-channel |
| Display Type | None |
| Parameters | AC Current, DC Current |
