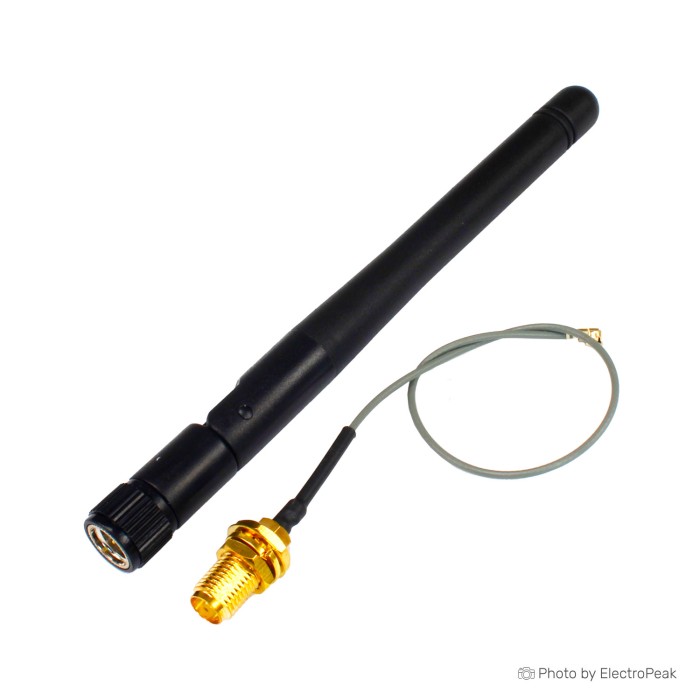

2.4GHz IPX to SMA Female Antenna Adapter With SMA Male Antenna

Volume discounts:
  • +100 6 % $0.66
  • +300 9 % $0.64
  • +500 10 % $0.63
  • +1000 13 % $0.61
Shop with confidence Learn More
Availability: 2414 items
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info

The 2.4GHz IPX to SMA Female Antenna Adapter is an accessory designed to facilitate the connection between wireless devices equipped with IPX connectors (also known as U.FL or IPEX connectors) and external antennas with SMA connectors. This adapter enables users to upgrade or extend the antenna capabilities of devices operating in the 2.4GHz frequency range, such as Wi-Fi modules and wireless communication systems.

Specificatoins of 2.4GHz IPX to SMA Female Antenna Adapter With SMA Male Antenna:

  • Band Frequency Range (MHz) 2400-2500 Suitable for 2.4GHz wireless applications
  • Gain Gain (dBi) > 2.5
  • Standing wave ratio VSWR <1.5
  • Polarization Polarization Vertical
  • Non-Circularity (dB) ±0.5
  • Input Impedance Impedance (Ω) 50
  • Lightning Protection Direct Ground
  • Maximum Power Maximum Input Power(W) 50
  • Connector Types: IPX (U.FL/IPEX) to SMA Female (adapter), SMA Male (antenna)
  • Antenna Dimension (mm) 110 (Unbend) 92 (Bend)
  • Tail Length Tailing Cable Length (mm) 100/120/200
  • Packing Size Packing Size (mm) 295×110×60
  • Use Environment Application Condition Indoor
  • Operating Temperature (°C) -40~+70
  • Storage Temperature Reposition Temperature(°C) - 55~+80

Features of 2.4GHz IPX to SMA Female Antenna Adapter With SMA Male Antenna:

  • Connector Compatibility: The adapter enables the connection between devices equipped with IPX connectors and SMA antennas, providing flexibility in antenna selection.
  • Frequency Range: Suitable for 2.4GHz wireless applications, including Wi-Fi, Bluetooth, and other communication protocols.
  • Easy Upgrade: Users can easily upgrade or replace the existing antenna of compatible devices to improve signal strength and coverage.
  • Usage Tip:
  • Ensure the correct orientation and alignment of the IPX and SMA connectors when attaching the adapter and antenna. Use the adapter to connect an external high-gain antenna for improved wireless range.
  • Caution:
  • Take care when connecting and disconnecting the adapter and antenna to prevent damage to the connectors. Verify the compatibility of your device's connectors before using the adapter.
