UFL Seat IPEX Antenna Connector
SAVE
As low as $0.0650
In stock
Only %1 left
SKU
CAB-01-170
UFL Seat IPEX Antenna Connector is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
433MHz IPEX Spring Antenna Previous

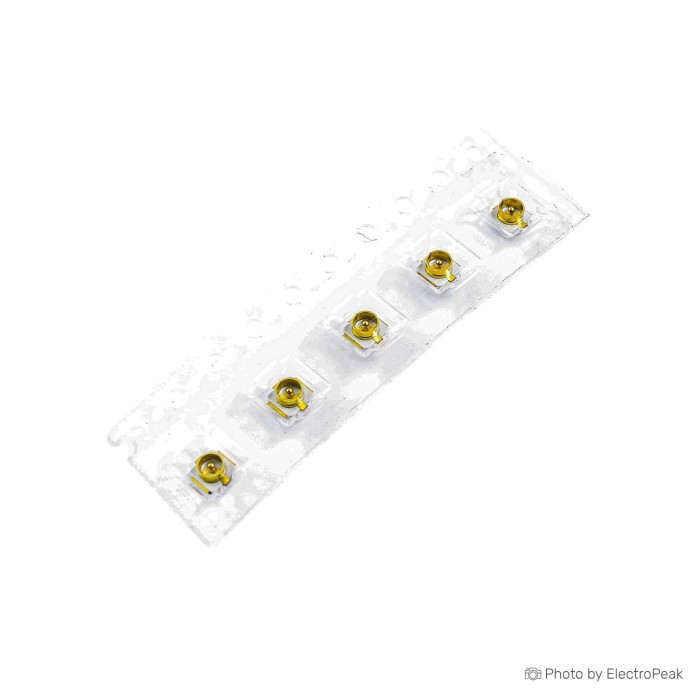

U.FL IPEX Male Antenna Connector is a compact surface-mount antenna connector for wireless and antenna applications. It is designed for easy snap-on and snap-off mating. The connector supports high-speed information transfer applications and is suitable for IPX U.FL cables. Its small size and slim profile make it suitable for portable devices and wireless modules.
Features of U.FL IPEX Male Antenna Connector - 6GHz, 50Ω
- Snap-on and snap-off mating
- Ultra low profile design
- Small footprint
- Hirose U.FL compatible
- Mechanical durability up to 100 cycles
Specifications of U.FL IPEX Male Antenna Connector - 6GHz, 50Ω
- Connector model: U.FL
- Maximum frequency: 6 GHz
- Frequency range: 0 - 6 GHz
- Impedance: 50Ω
- Insulation resistance: 500 MΩ Min
- Connector type: Male
- Connection type: Push
- Dielectric withstanding voltage: 200V AC/1 Min
- Inner contact resistance: 20 mΩ Max
- Outer contact resistance: 10 mΩ Max
- VSWR: 1.3 Max. (0 - 3 GHz 1.2 Max)
- Mechanical durability: 100 Cycles
- Relative humidity: 95% R.H. Max
- Operating temperature: -40~+85
- Compatibility: IPEX MHF, MHFII, and Hirose U.FL
- Dimensions: 3.1mm x 3mm x 1.25mm
- Mating height: 2.5 mm
How to Use U.FL IPEX Male Antenna Connector - 6GHz, 50Ω
- Align the connector with the matching U.FL interface.
- Press it into place for snap-on mating.
- Disconnect by lifting it off with snap-off mating.
More Info
- Suitable for WLAN, notebook computers, remote measuring equipment, Bluetooth, GPS, PDA, and portable devices.
