Description

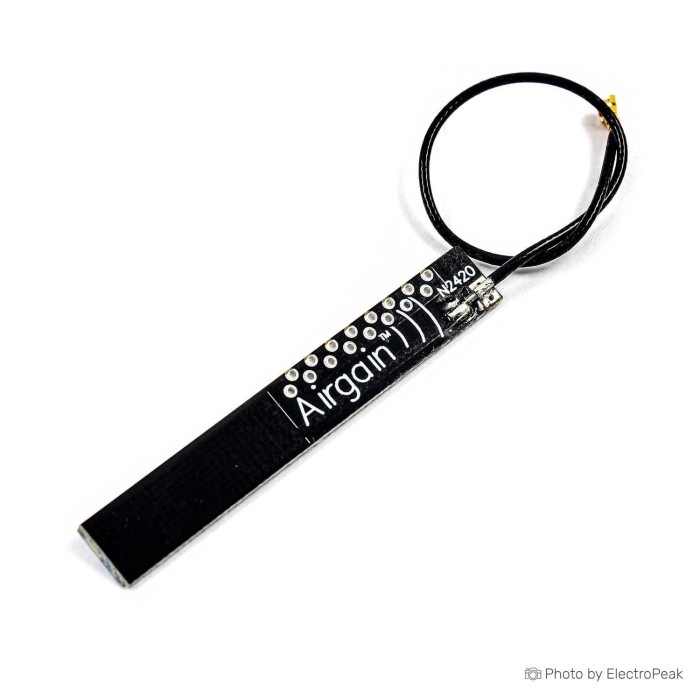

The PCB Antenna works on 2.4G and 5.8GHz frequency bands (ISM band), and has a Built-In PCB FPV Antenna Ipex U.FL IPX For ZigBee, Bluetooth, Wifi. This antenna has been developed to cover the current market applications that require rectangular form-factor, with easy installation through a cable connection.
This antenna provides a good flexibility and ease of integration, and its connection is made directly to a 2.4GHz module via a cable and connector.
Features
Frequency: 2400MHz ~ 2700MHz
Gain: 4.0dBi (±0.7)
VSWR.: <= 2.0
Polarization: Linear
Impedance: 50 Ohm
Wire Length: 100mm
Connector: IPX13
Temperature - 40 °C ~ + 65 °C
Size: 47.5mm x 7.5mm x 0.95mm
