Switching Power Supply Module - 12V, 300mA

12V 300mA Power Supply Module Review

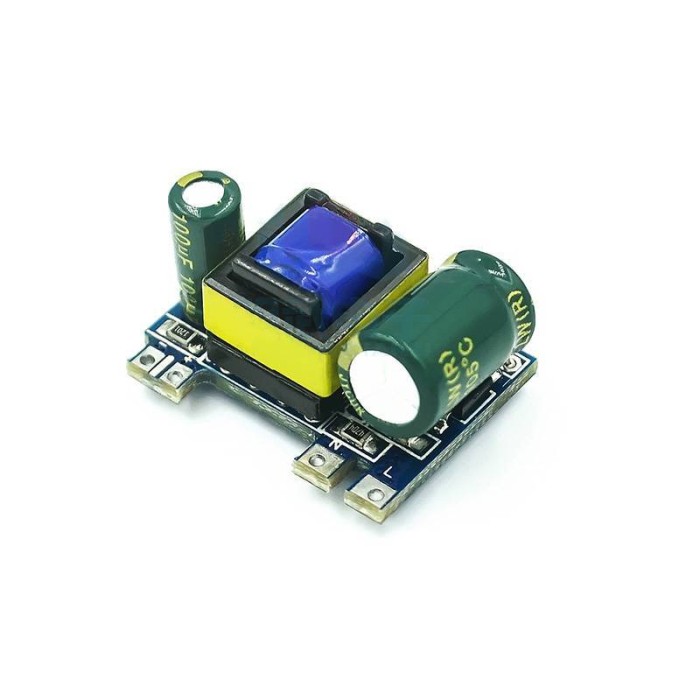

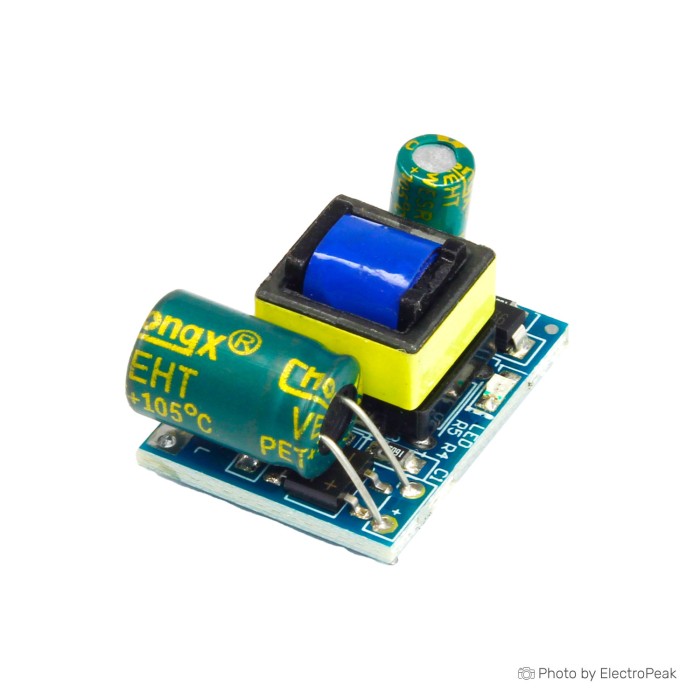

This compact 12V 300mA switching power supply module delivers a regulated 12V DC rail from high-voltage AC or DC sources. Its AC 50V–277V and DC 70V–390V input tolerance suits low-power electronics that need an internal step-down supply in space-constrained enclosures. It is not intended for loads drawing more than 300mA, circuits requiring low-noise analog performance, or installations that need formal safety certifications and integrated enclosures. For projects with different electrical demands, see other AC-DC switching power supply modules.

Specifications of Switching Power Supply Module - 12V, 300mA

• Input Voltage: AC 50V–277V / DC 70V–390V
• Output Voltage: 12V ±0.3V
• Output Current: 0–300mA
• Output Power: 3.5W
• Efficiency: Approximately 80%
• Protections: Over-voltage, over-current, over-temperature, short circuit
• No-load Power Consumption: Less than 0.05W
• Board Dimensions: 23.5x18mm
• Overall Height: 13.5mm
• Operating Temperature: -20°C to +70°C

12V 300mA Power Supply Module Specifications Explained

Choosing an AC to DC 12V module means matching its electrical ratings and physical envelope to the operating environment. These specifications set clear boundaries for acceptable input sources, safe loads, and thermal limits.

Mixed-voltage systems needing simultaneous 5V logic and 12V or 24V peripheral power can use the Dual Switching Power Supply Module (5V and 12V/24V). For other physical formats and output voltages, review the available AC-DC power supply module options.

12V 300mA Power Supply Module Limitations

The board's primary constraint is its strict 300mA current capacity. Although the documentation notes constant current mode at full load, in practice this acts as current limiting: when load demand exceeds 300mA, the output voltage drops to protect the switching circuitry instead of maintaining a stable 12V output. It is not an adjustable bench power supply or a dedicated constant-current driver for high-power LEDs.

The 70V DC minimum input threshold also prevents this board from running on low-voltage DC sources such as 12V or 24V automotive or battery systems. Comparable modules in this family are reported to produce approximately 60–100mV of switching ripple under 50% load. That high-frequency switching noise makes the board unsuited to noise-sensitive analog front ends, audio preamplifiers, or precision measurement references without extra LC low-pass filtering.

This module is supplied as an open-frame bare circuit board without an enclosure, pre-drilled mounting holes, or an onboard fuse. Mains connections expose lethal voltages. Proper electrical isolation, secure potting or standoffs, and a qualified external enclosure are mandatory. For permanent wall-mounted equipment, pair the installation with an AC-01A Power Socket With Power Light to provide an accessible disconnect switch and visible status. If your system draws more than 300mA or needs an enclosed, safety-grounded metal housing, consider the S-25-12 Enclosed SMPS (12V 2A, 25W) instead.

12V 300mA Power Supply Module Alternatives

Match the power supply to the required voltage rail, peak current capability, and enclosure style. Rather than forcing higher loads onto a 300mA board, choose an alternative designed for your electrical profile:

• 3.3V Logic and Microcontrollers: For 3.3V electronics, robotics, and wireless modules, the 3.3V 600mA Switching Power Supply Module provides direct low-voltage power without downstream step-down converters.
• Standard 5V Microcontroller Projects: Development boards, digital logic, and relays up to a 1A limit suit the 5V 1A Switching Power Supply Module, which delivers compact 5V power.
• Split Logic and Actuator Systems: The Dual Switching Power Supply Module (5V and 12V/24V) supplies dedicated 5V control circuitry alongside a secondary 12V or 24V rail for motors or valves.
• Standard 24V Automation Rails: Industrial sensors and automation electronics needing 24V DC at up to 1A can use the 24V 1A Switching Power Supply Module.
• Heavy Industrial 24V Loads: For solenoids, actuators, and high-draw equipment, the XK-2412-24 24V 4A Switching Power Supply Module delivers up to 100W of regulated power.
• Enclosed 24V Installations: The S-25-24 Enclosed SMPS (24V 1A, 24W) places the power supply in a vented metal chassis with screw terminals for robust mounting.
• Higher-Current 12V Projects: When project loads exceed 300mA, the S-25-12 Enclosed SMPS (12V 2A, 25W) provides up to 2A of regulated 12V output inside a protective enclosure.

Other bare-board modules are available with higher amperage ratings. Their terminal spacing, mounting patterns, and output limits differ from this unit, so they address distinct system requirements rather than serving as direct drop-in substitutions.

12V 300mA Power Supply Module Accessories and First-Power Check

Because this board is an unpopulated, open module, completing the build safely requires complementary wiring components and verification tools.

Required Accessories

• AC Input Connection Hardware: An insulated mains inlet is required to bring AC power safely into your enclosure. Recommended options include:
  • AC-01A Power Socket With Power Light (rocker switch with integrated indicator)
  • AC-03 Power Socket (compact snap-in chassis socket)
  • AC-04 Power Socket (standard panel-mount receptacle)
  • Power Cord Plug (for termination to a standard wall socket)
• Compatible 12V Load: Electronic devices or sub-circuits whose combined steady-state and peak startup currents do not exceed 300mA.

Recommended Accessories

• Non-Conductive Enclosure: A plastic project box or isolated chassis prevents accidental human contact with exposed high-voltage AC mains pins.
• External Mains Fuse: An inline fuse, typically fast-blow rated for the expected input draw, installed on the AC line wire to protect against severe upstream faults.
• Digital Multimeter: Essential for checking output voltage and verifying polarity before connecting your application circuit.
• Mounting Hardware: Neutral silicone, non-conductive adhesive standoffs, or a custom 3D-printed carrier to secure the board, as the PCB does not feature standard screw holes.

Optional Accessories

• LC Low-Pass Filter: A small inline inductor and capacitor on the 12V output rail to smooth switching ripple when powering sensitive analog sensors.

First-Power Verification Procedure

No drivers, firmware, or software configuration are required for this hardware module. Follow these electrical verification steps before connecting sensitive components:

1. Ensure the mains power source is fully de-energized before making any connections to the board.
2. Solder well-insulated leads from your mains connector to the module's AC input solder pads, verifying that no stray copper strands bridge nearby traces.
3. Leave the 12V output terminals completely disconnected from your load.
4. Apply input power. The onboard green LED will illuminate, confirming that the internal switching stage is active.
5. Using a digital multimeter set to DC volts, measure across the positive and negative output pads. The reading should register 12V within the stated ±0.3V tolerance.
6. Disconnect input mains power, allow residual onboard capacitors to bleed down, then connect your verified 12V load (under 300mA).

12V 300mA Power Supply Module FAQ and Buying Checklist

Can this 12V 300mA power supply module run from 110V or 220V AC?

Yes. The board accepts AC 50V–277V input, which accommodates standard 110V, 120V, 220V, and 240V residential mains supplies without manual switch selection.

Can I use a 12V battery as the input for this AC to DC 12V module?

No. Although the module accepts direct-current input, its supported DC input range is 70V–390V. A 12V battery is far below the switching controller's minimum startup voltage.

What is the maximum load for this 12V 300mA power supply module?

The continuous output ceiling is 300mA at 12V DC, for a maximum continuous output of 3.5W. Drawing more than 300mA triggers onboard current limiting and causes the output voltage to sag below 12V.

Does the module provide an adjustable output voltage?

No. The factory output is fixed at 12V ±0.3V. There is no onboard potentiometer or feedback trimmer to alter the output level.

What protections are included?

The module includes built-in protection against over-voltage, over-current, over-temperature, and short circuits to safeguard internal components during external fault conditions.

How small is the board?

The PCB measures 23.5mm by 18mm and has an overall vertical component height of 13.5mm, allowing it to fit inside compact housings and junction spaces.

Is this suitable for audio or precision analog circuits?

No, unless additional filtering is added. Switching modules in this class typically exhibit 60–100mV of output ripple at half load, which can introduce audible hum into audio gear or noise into analog-to-digital conversions.

Does it include a fuse, enclosure, wiring hardware, or mounting method?

No. The board is shipped as a bare PCB module. You must provide your own mounting arrangement, protective enclosure, wiring, and external input fuse.

Can I connect multiple modules in parallel for more current?

Parallel operation is not recommended. Without active current-sharing circuitry, slight voltage differences between modules cause one unit to absorb the bulk of the load and trigger current limiting prematurely.

Purchase Decision Summary

• Ideal for: Compact, low-power 12V systems drawing under 300mA total current, including small microcontroller relay triggers, standby circuits, and miniature control boards where enclosure space is strictly limited.
• Maybe for: Short, low-power 12V LED strips, digital panel meters, and basic prototypes where you can safely provide an insulated enclosure, an inline fuse, and verify total inrush current.
• Avoid if: Your load exceeds 300mA, your circuit requires low electrical noise (audio/analog), you are running from a 12V low-voltage battery, or your project requires an enclosed, pre-certified chassis supply like the S-25-12 Enclosed SMPS (12V 2A, 25W).

Buying Checklist

• [ ] Device requires a fixed 12V DC power supply (not 3.3V, 5V, or 24V).
• [ ] Total continuous and peak startup current is strictly 300mA or less (3.5W maximum).
• [ ] Input power is an AC mains line (50V–277V) or high-voltage DC source (70V–390V), not a low-voltage battery.
• [ ] Space inside your housing accommodates 23.5x18x13.5mm plus safe high-voltage clearance.
• [ ] You have an insulated project box, an inline fuse, and a Power Cord Plug ready for safe mains wiring.
• [ ] Circuit does not require noise-free analog power or documented industrial safety certifications.

For other voltages, power levels, or fully enclosed designs, browse the full selection of other AC-DC power supply modules.
