Switching Power Supply Module - 12V, 8A
$4.7500
In stock
SKU
BAT-02-078
Volume discounts:
- +25 4 % $4.5600
- +100 6 % $4.4600
- +300 8 % $4.3700
- +500 10 % $4.2700
- +1000 12 % $4.1800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Switching Power Supply Module - 12V, 1A Previous

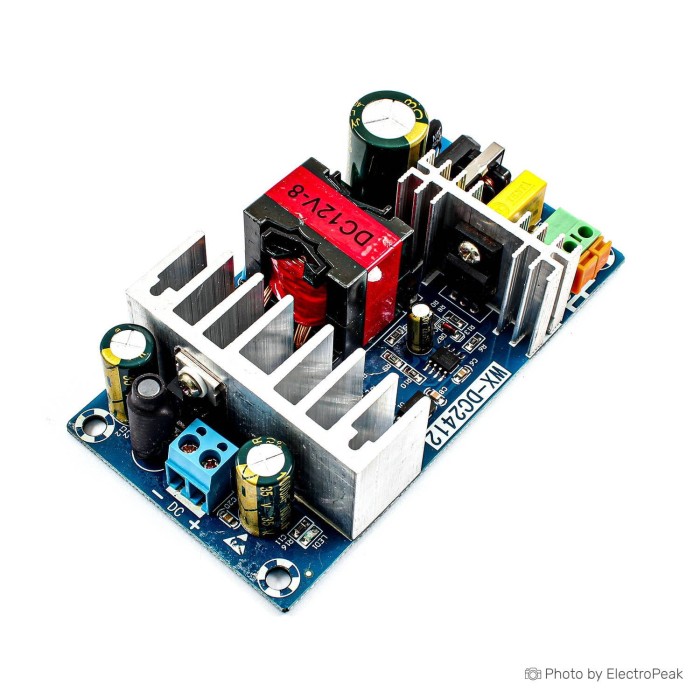

JS-12V Switching Power Supply Module is an isolated AC to DC power supply module with a 12V DC output. It supports an input voltage range of 85-265V AC and is rated for 100W output power. The module is designed with multiple protection functions for safer operation. It also uses a double PCB design for improved performance. An indicator light is included on the module.
Features of JS-12V Switching Power Supply Module - 12V, 8A, 100W
- Isolated AC to DC conversion
- Multiple protection functions
- Double PCB design
- Indicator light included
- Small size
Specifications of JS-12V Switching Power Supply Module - 12V, 8A, 100W
- Model: JS-12V
- Input voltage: 85-265V AC
- Output voltage: 12V DC
- Output current: 6-8A
- Power: 100W
- Mounting hole spacing: 98x47 mm
- Dimensions: 106.5x57 mm
- Weight: 145 grams
- Ripple noise: ≤200MV
How to Use JS-12V Switching Power Supply Module - 12V, 8A, 100W
- Connect the AC input within the specified input voltage range.
- Use the 12V DC output according to the module rating.
- Install the module using the mounting hole spacing.
More Info
- Double PCB construction.
- Indicator light on the module.
| Weight (g) | 145 |
|---|
