Switching Power Supply Module - 24V, 1A
$1.5000
In stock
SKU
BAT-02-132
Volume discounts:
- +50 4 % $1.4400
- +100 5 % $1.4200
- +300 7 % $1.3900
- +500 9 % $1.3600
- +1000 11 % $1.3300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Switching Power Supply Module - 12V, 2A Previous

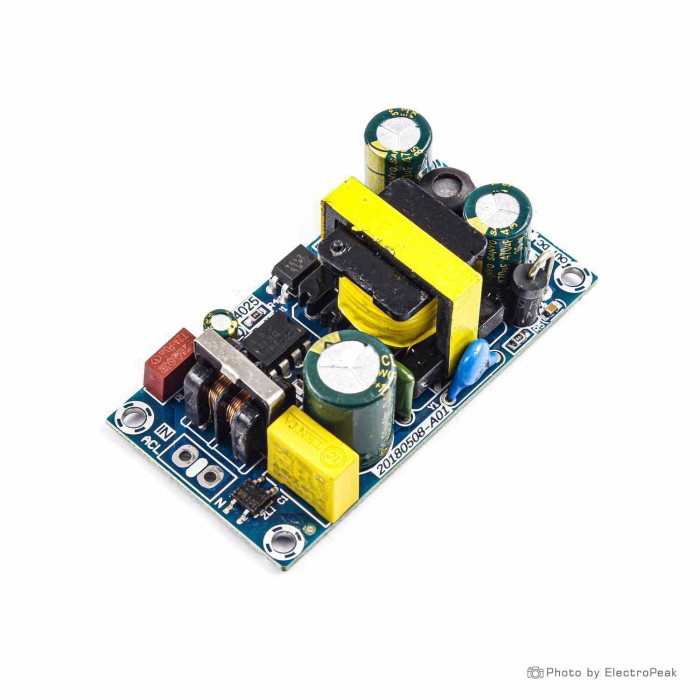

Switching Power Supply Module - 24V, 1A is an AC to DC power supply module for electronics and automation projects. It provides a 24V output with 1A output current and 24W output power. The module supports AC100-265V input voltage and 50Hz/60Hz work frequency. It includes over voltage protection, over current protection, short circuit protection, and over load protection. The compact module design supports easy installation and fixed mounting.
Features of Switching Power Supply Module - 24V, 1A
- 24V DC output
- 1A output current
- 24W output power
- Over voltage protection
- Over current protection
- Short circuit protection
- Over load protection
- Compact module size
Specifications of Switching Power Supply Module - 24V, 1A
- Input Voltage: AC100-265V
- Output Voltage: 24V
- Output Current: 1A
- Output Power: 24W
- Over Voltage Protection: Yes
- Over Current Protection: Yes
- Short Circuit Protection: Yes
- Over Load Protection: Yes
- Work Frequency: 50Hz/60Hz
- Operating Temperature: -20°~85°
- Operating Humidity: 5%~95%RH
- Module Size: 69*36*25mm
How to Use Switching Power Supply Module - 24V, 1A
- Connect the AC100-265V input voltage.
- Wire the 24V, 1A output to the target device.
- Mount the module using the fixed mounting holes if needed.
More Info
- AC to DC switching power supply module
- Input and output are highly isolated
- Output and input can be welded with 5.8 clamps or pins
- Fixed hole diameter: 3.0mm
