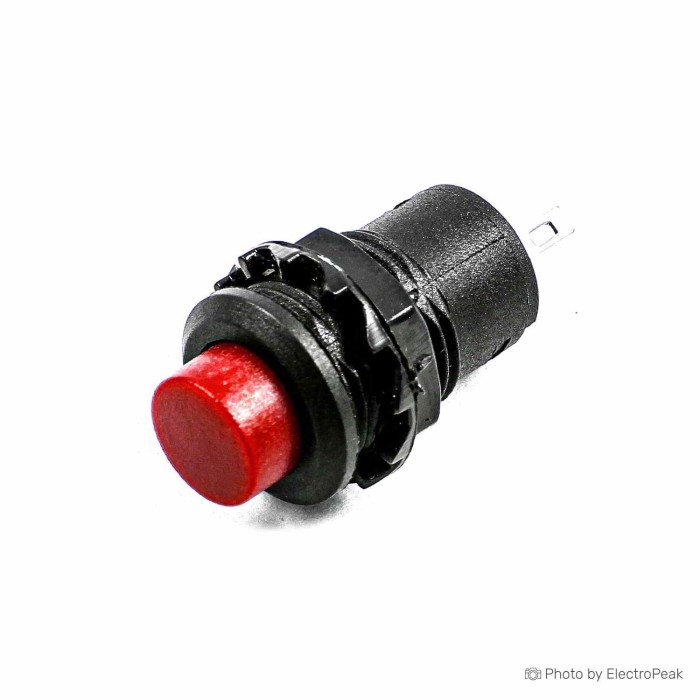

DS-428 12mm Momentary Push Button Switch - Red

DS-428 Momentary Push Button Switch is a 12mm push button switch with a red color finish. It is designed as a compact switch for electronics, automation equipment, communication equipment, automotive electronics, and instrumentation. The product also appears in household appliances and other electronic equipment applications. This DS-428 switch includes the listed physical and electrical specifications for selection and installation.

Features of DS-428 Momentary Push Button Switch - Red, 12mm

• Momentary push button design
• Red color
• 12mm hole diameter
• Long service life
• Suitable for multiple equipment categories

Specifications of DS-428 Momentary Push Button Switch - Red, 12mm

• Model: DS-428
• Type: Momentary Push Button Switch
• Color: Red
• Hole diameter: 12mm
• Total length: 30
• Pin pitch: 6mm
• Rated current / voltage: 3A / 125vac
• Rated current / voltage: 1.5a / 250VAC
• Service life: ≥ 10000

How to Use DS-428 Momentary Push Button Switch - Red, 12mm

1. Install the switch in a 12mm mounting hole.
2. Connect the pins according to the 6mm pin pitch.
3. Use the switch within the listed rated current and voltage values.

More Info

• Made of green and environmental protection material.
• Widely used in household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, and instrumentation.
