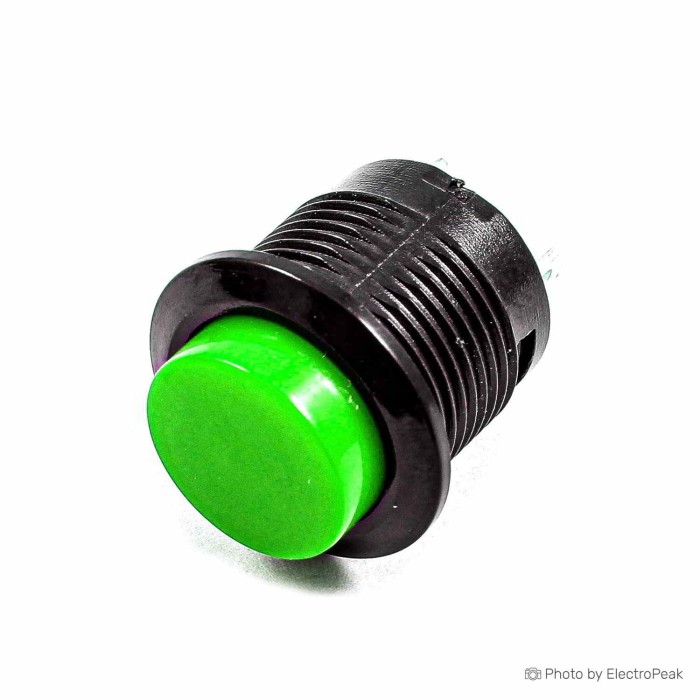

R13-507 12mm Momentary Push Button Switch - Green

R13-507 12mm Momentary Push Button Switch - Green is a momentary push button switch with a green round head and 2-pin design. It is a push button switch with 1NO (SPST) contact type and automatic reset action when released. The switch is designed for panel mounting and includes a washer and mounting nut. It is suitable for electrical control circuits that require manual switching.

The product is identified by model R13-507 and a 12mm size. It supports momentary operation and is available in green.

Features of R13-507 12mm Momentary Push Button Switch - Green

• Momentary action
• 1NO (SPST) contact type
• 2-pin design
• Green round head
• Automatic reset
• Panel mount installation
• Washer and mounting nut included

Specifications of R13-507 12mm Momentary Push Button Switch - Green

• Model: R13-507
• Size: 12mm
• Color: Green
• Maximum voltage: up to 250V DC
• Maximum current: up to 1A
• Voltage: 220V AC
• Contact type: 1NO (SPST)
• Type: 2Pin spat momentary
• Mount thread: M16x10mm
• Button diameter: 13 mm / 0.5 inch
• Height: 20 mm / 0.8 inch
• Panel cutout diameter: 16mm
• Working temperature: -25 to +85 °C
• Lifespan: more than 10000 cycles

How to Use R13-507 12mm Momentary Push Button Switch - Green

1. Install the switch in the panel cutout.
2. Secure it with the washer and mounting nut.
3. Connect the 2 pins to the circuit.
4. Press the button to close the contact and release it to reset.

More Info

• Momentary operation returns to the open state after release.
• Green color identifies the switch body and button.
• Useful for manual control in electrical circuits.
