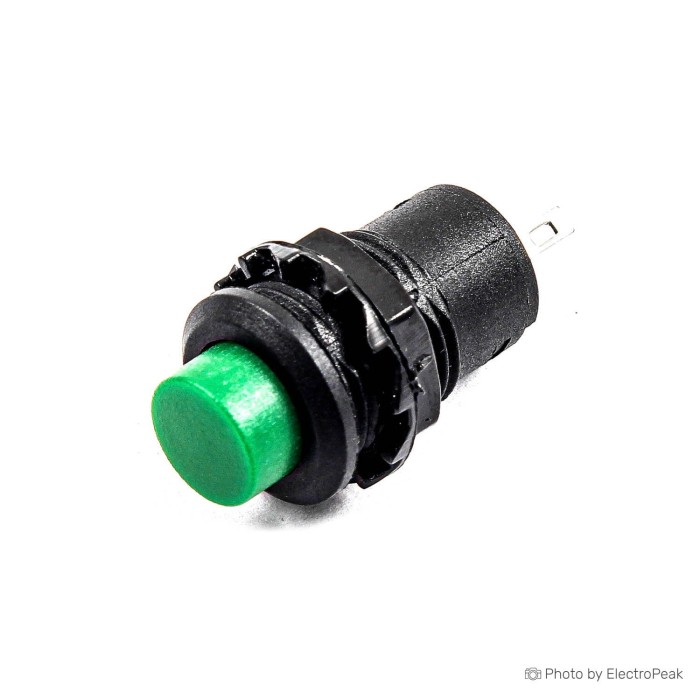

DS-428 12mm Momentary Push Button Switch - Green

DS-428 Momentary Push Button Switch - Green, 12mm is a green push button switch for electronics and automation projects. It is made of green and environmental protection material. The switch is designed with a 12mm hole diameter and a total length of 30. The pin pitch is 6mm. Rated current and voltage are listed as 3A / 125VAC and 1.5A / 250VAC. The service life is ≥ 10000.

Features of DS-428 Momentary Push Button Switch - Green, 12mm

• Green color
• 12mm hole diameter
• 30 total length
• 6mm pin pitch
• 3A / 125VAC rated current and voltage
• 1.5A / 250VAC rated current and voltage
• Service life ≥ 10000

Specifications of DS-428 Momentary Push Button Switch - Green, 12mm

• Model: DS-428
• Product type: Momentary Push Button Switch
• Color: Green
• Material: Green and environmental protection material
• The diameter of the hole: 12mm
• Total length: 30
• Pin pitch: 6mm
• Rated current / voltage: 3A / 125VAC
• Rated current / voltage: 1.5A / 250VAC
• The service life: ≥ 10000

How to Use DS-428 Momentary Push Button Switch - Green, 12mm

1. Prepare an opening with a 12mm hole diameter.
2. Install the switch and connect it using the 6mm pin pitch.
3. Use it within the listed rated current and voltage values.

More Info

• Suitable for household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, and instrumentation.
• DS-428 is a self locking push button switch.
