V-156-1C25 Micro Switch
$0.1800
In stock
SKU
ELC-14-031
Volume discounts:
- +100 6 % $0.1700
- +1000 11 % $0.1600
V-156-1C25 Micro Switch is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Plastic Potentiometer Knob Cap - 15mmx17mm (White) Previous

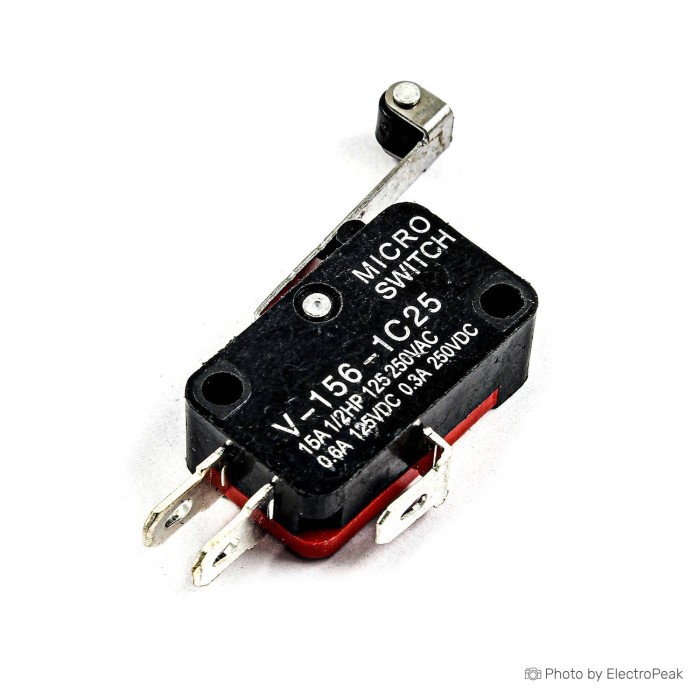

The V-156-1C25 Micro Switch is an electromechanical micro switch for control circuits, safety interlocks, and object counting at a passage point. It uses an actuator and internal contacts to provide electrical connection or disconnection when an object makes contact. This micro switch is designed for AC and DC control circuits and includes 3 terminals. It is available as a compact switch with a roller lever actuator. The product is suitable for applications that require position detection, passage detection, and end-of-travel sensing.
Features of V-156-1C25 Micro Switch - 15A, SPDT
- SPDT contact configuration
- 3-terminal design
- Roller lever actuator
- AC and DC control circuit use
- High electrical and mechanical life
Specifications of V-156-1C25 Micro Switch - 15A, SPDT
- Model: V-156-1C25
- Current and voltage range: 15A, 1/2HP, 125/250VAC 0.6A,125VDC; 0.3A, 250VDC
- Number of terminals: 3
- Contact configuration: SPDT
- Application: AC and DC control circuits
- Size: 28x10x16 mm
- Hole diameter: 3.2 mm
- Button height: 3 mm
- Actuator size: 28x4.5 mm
- Terminal blade width: 4.7 mm
- Electrical life: 100000 cycles
- Mechanical life: 5000000 cycles
- Operating temperature: 25- to 85+ degrees Celsius
- Soldering temperature: maximum 250 degrees Celsius
- Material: plastic and metal
- Color: black and red
- Package quantity: 5 pieces
- Size: 27,8x15,9x10mm
- Roller diameter: 4.75mm
- Lever length: 27mm
- Classification: 15A AC250V
- Support voltage: AC1 0000 V 1 minute
- Insulation resistance: 100 m O DC500V
- Contact resistance: <>
- Welding temperature: 250 ° C max. 3 seconds
- Ambient temperature used: -25 ° C to + 80 ° C
- Ambient humidity used: <85%
- Mechanical life: 5,000,000 cycles
- Electrical lifespan: 100,000 cycles
- Operating force: 160
- The part number is V-156-1C25
How to Use V-156-1C25 Micro Switch - 15A, SPDT
- Install the micro switch in the desired control position.
- Connect the terminals according to the required circuit.
- Use the actuator contact to trigger switching.
More Info
- Part number: V-156-1C25
- Package includes 5 pieces
| Operating Temp (°C) | -25 to +85 °C |
|---|---|
| Dimensions (mm) | 28x10x16 mm |
| Mounting Type | Screw holes |
| Channel Count | 3 |
| Switching Capacity | 15A, 1/2HP, 125/250VAC; 0.6A, 125VDC; 0.3A, 250VDC |
| Load Current (A) | 15 |
| Chipset | V-156-1C25 |
| Relay Type | Relay output |
| Display Type | None |
| Material | Metal + Plastic |
| Input Type (AC/DC) | AC/DC |
