Waveshare 1.3 inch SPI/I2C OLED Display Module (B)

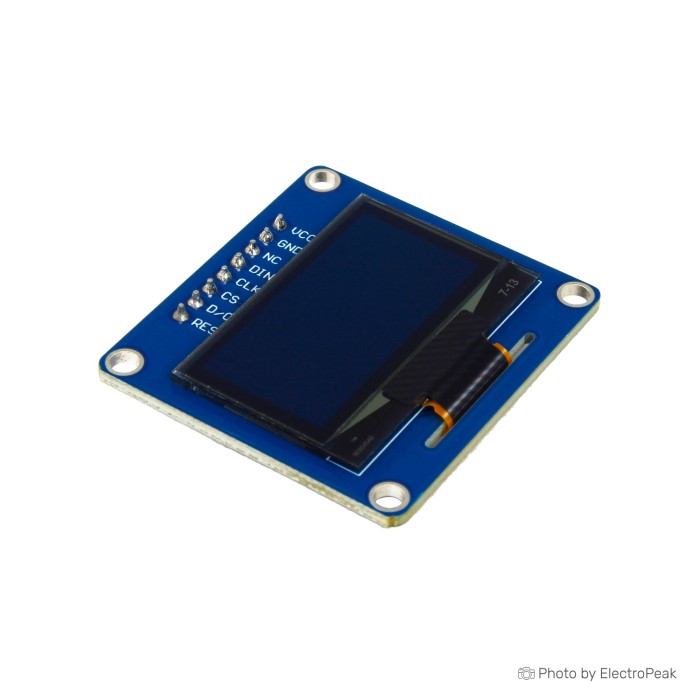

The Waveshare 1.3 Inch SPI/I2C OLED Display Module is a blue monochrome display module for electronic and embedded projects. It uses the SH1106 driver chip and supports 3-wire SPI, 4-wire SPI, and I2C interfaces. The module has a 1.3inch display size and a 128*64 resolution. It offers a visible angle of >160° and operates with 3.3V / 5V input. The module is suitable for hardware platforms such as Raspberry Pi, Jetson Nano, Arduino, and STM32.

Features of Waveshare 1.3 Inch SPI/I2C OLED Display Module - Blue, 128x64

• SH1106 driver chip
• 3-wire SPI support
• 4-wire SPI support
• I2C support
• 128*64 resolution
• 1.3inch display size
• Blue display color
• Visible angle of >160°
• 3.3V / 5V operating voltage
• Hardware platform support

Specifications of Waveshare 1.3 Inch SPI/I2C OLED Display Module - Blue, 128x64

• Driver chip: SH1106
• Interface: 3-wire SPI
• Interface: 4-wire SPI
• Interface: I2C
• Resolution: 128*64
• Display size: 1.3inch
• Colors: Blue
• Visible angle: >160°
• Operating temp. (℃): -30~70
• Storage temp. (℃): -30~80
• Operating voltage: 3.3V / 5V
• Applicability: Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32
• Pin 1: VCC
• Pin 2: GND
• Pin 3: NC
• Pin 4: DIN
• Pin 5: CLK
• Pin 6: CS
• Pin 7: D/C
• Pin 8: RES
• 3-wire SPI mode: BS0/BS1 1/0, DIN MOSI, SCK SCLK
• 4-wire SPI mode: BS0/BS1 0/0, DIN MOSI, SCK SCLK
• I2C mode: BS0/BS1 0/1, DIN SDA, SCK SCL

How to Use Waveshare 1.3 Inch SPI/I2C OLED Display Module - Blue, 128x64

1. Select the required interface mode.
2. Connect the pins according to the chosen mode.
3. Power the module with 3.3V / 5V.

More Info

• Development resource: Wiki at www.waveshare.com/wiki/1.3inch_OLED_(B)
• Straight/vertical pinheader
