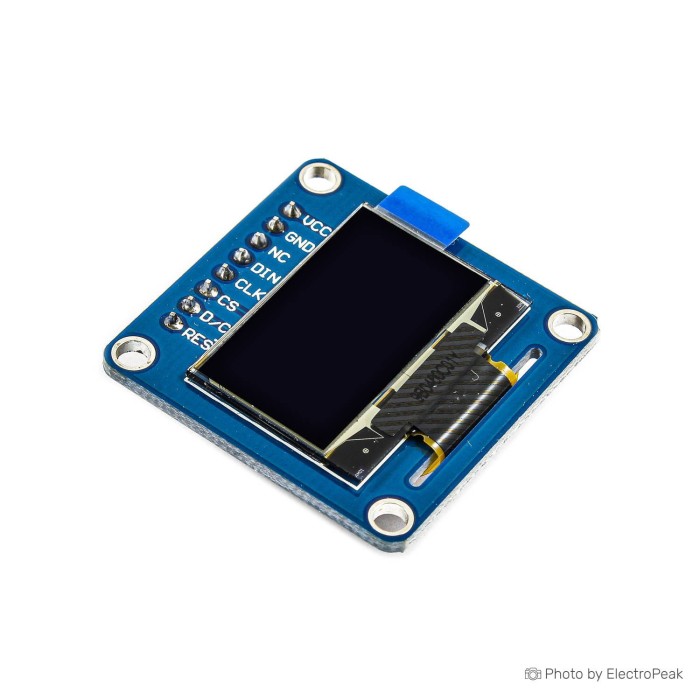

Waveshare 0.96 inch OLED SPI/I2C Display Module (B)

Waveshare 0.96 Inch OLED SPI/I2C Display Module (B) is a compact OLED display module with SSD1306 driver chip. It supports 3-wire SPI, 4-wire SPI, and I2C interfaces. The display size is 0.96 inch with a resolution of 128×64 pixels. It uses dual colors with a 1/4 yellow section and a 3/4 blue section. The viewing angle is over 160°. Operating voltage is 3.3V to 5V. Operating temperature is -20 to 70 °C, and storage temperature is -30 to 80 °C. It is applicable to Raspberry Pi, Jetson Nano, Arduino, and STM32 hardware platforms.

Features of Waveshare 0.96 Inch OLED SPI/I2C Display Module (B)

• SSD1306 driver chip
• 3-wire SPI support
• 4-wire SPI support
• I2C support
• 128×64 resolution
• 0.96 inch display size
• Dual-color display
• Over 160° viewing angle

Specifications of Waveshare 0.96 Inch OLED SPI/I2C Display Module (B)

• Driver chip: SSD1306
• Interface: 3-wire SPI
• Interface: 4-wire SPI
• Interface: I2C
• Resolution: 128×64 pixels
• Display size: 0.96 inch
• Colors: 1/4 yellow section
• Colors: 3/4 blue section
• Viewing angle: over 160°
• Operating temperature: -20 to 70 °C
• Storage temperature: -30 to 80 °C
• Operating voltage: 3.3V to 5V
• Compatibility: Raspberry Pi
• Compatibility: Jetson Nano
• Compatibility: Arduino
• Compatibility: STM32

How to Use Waveshare 0.96 Inch OLED SPI/I2C Display Module (B)

1. Connect the module using the selected SPI or I2C interface.
2. Apply the required 3.3V to 5V operating voltage.
3. Use the compatible hardware platform for display output.

More Info

• Pin 1: VCC
• Pin 2: GND
• Pin 3: NC
• Pin 4: DIN
• Pin 5: CLK
• Pin 6: CS
• Pin 7: D/C
• Pin 8: RES
• 3-wire SPI mode: BS0=1, BS1=0, DIN = MOSI, SCK = SCLK
• 4-wire SPI mode: BS0=0, BS1=0, DIN = MOSI, SCK = SCLK
• I2C mode: BS0=0, BS1=1, DIN = SDA, SCK = SCL
