ZS18010 Liquid Level Sensor - Float Switch
$3.9500
In stock
SKU
SEN-20-023
Volume discounts:
- +25 4 % $3.7900
- +100 6 % $3.7000
- +300 8 % $3.6200
- +500 10 % $3.5400
- +1000 12 % $3.4600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZS10010-2 Liquid Level Sensor - Double Balls Float Switch Previous

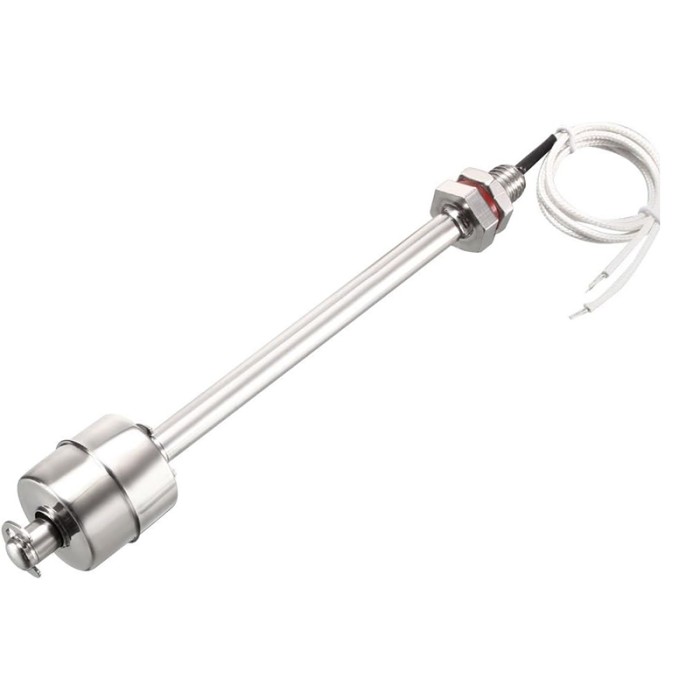

The ZS18010 Liquid Level Sensor is a float switch for monitoring and controlling liquid levels in tanks, containers, and other applications. It is built with stainless steel SUS304 for durability and corrosion resistance. The switch is designed for high and low liquid level detection. It supports a maximum switching voltage of 100V DC and a maximum contact rating of 10W. The ZS18010 float switch also includes a 0.5A maximum switching current and a 1A maximum carry current.
Features of ZS18010 Liquid Level Sensor - Float Switch
- High and low level detection
- SUS304 stainless steel construction
- 100V DC switching voltage
- 10W contact rating
Specifications of ZS18010 Liquid Level Sensor - Float Switch
- Product Name: Floating Switch
- Model No.: ZS18010
- Max Contact Rating: 10W
- Max Switching Voltage: 100V DC
- Max Switching Current: 0.5A
- Max Breakdown Voltage: 220V DC
- Max Carry Current: 1A
- Max Contact Resistance: 100mOhm
- Max Temperature: -30°C to +120°C
- Material: Stainless Steel, SUS304
- Thread Diameter: 10mm
- Thread Length: 15mm
- Switch Total Length: 180mm
- Color: Silver Tone
- Dimensions: 180mm x 10mm (Switch Length x Thread Diameter)
How to Use ZS18010 Liquid Level Sensor - Float Switch
- Install the float switch at the required tank or container level.
- Connect the switch within the rated electrical limits.
More Info
- Suitable for liquid level monitoring and control
- Silver tone finish
| Operating Voltage (V) | 100V DC |
|---|---|
| Operating Current (mA) | 500mA (Max Switching Current) |
| Operating Temp (°C) | -30°C to +120°C |
| Dimensions (mm) | 180mm x 10mm (Switch Length x Thread Diameter) |
| Output Type | Digital |
| Measurement Range | 180mm (Total Length) |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Chipset | ZS18010 |
