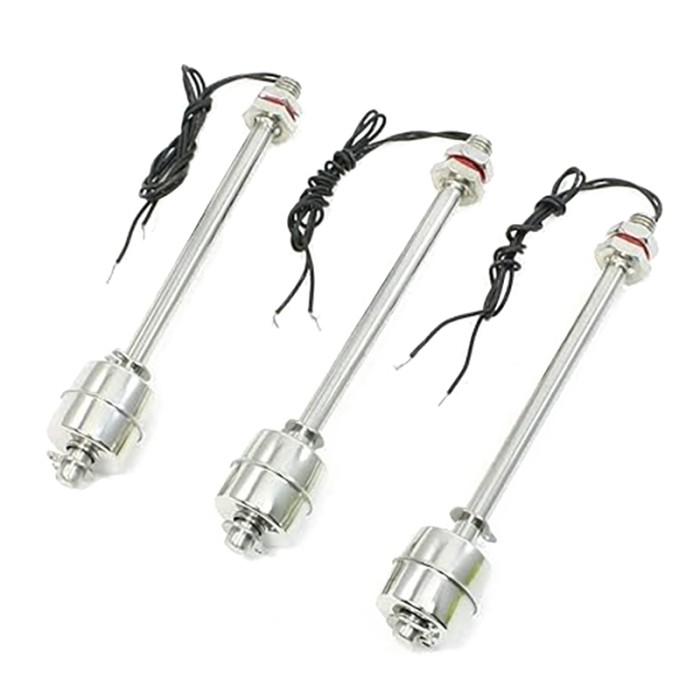

ZS15010 Liquid Level Sensor - Float Switch
$3.7500
In stock
SKU
SEN-20-029
Volume discounts:
- +25 4 % $3.5900
- +100 6 % $3.5100
- +300 9 % $3.4300
- +500 11 % $3.3500
- +1000 13 % $3.2700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZS18010 Liquid Level Sensor - Float Switch Previous
The ZS15010 Liquid Level Sensor - Float Switch is a liquid level sensing component for monitoring and controlling liquid levels in tanks, containers, and similar applications. It uses a float switch design and is built from SUS304 stainless steel for durable construction and corrosion resistance. The ZS15010 is intended for high and low level detection in liquids. It features a maximum contact rating of 10W and a maximum switching voltage of 100V DC. This float switch also includes a 0.5A maximum switching current and a 220V DC maximum breakdown voltage. Its compact threaded design and silver tone finish make it a practical liquid level sensor for engineering and electronics projects.
Features of ZS15010 Liquid Level Sensor - Float Switch
- Float switch design
- SUS304 stainless steel body
- High and low level detection
- Corrosion-resistant construction
- Threaded mounting
Specifications of ZS15010 Liquid Level Sensor - Float Switch
- Product Name: Floating Switch
- Model No.: ZS15010
- Max Contact Rating: 10W
- Max Switching Voltage: 100V DC
- Max Switching Current: 0.5A
- Max Breakdown Voltage: 220V DC
- Max Carry Current: 1A
- Max Contact Resistance: 100mOhm
- Max Temperature: -30°C to +120°C
- Material: Stainless Steel, SUS304
- Thread Diameter: 10mm
- Thread Length: 15mm
- Switch Total Length: 150mm
- Color: Silver Tone
- Dimensions: 150mm x 10mm (Switch Length x Thread Diameter)
How to Use ZS15010 Liquid Level Sensor - Float Switch
- Install the float switch using the threaded mounting section.
- Connect it to the intended liquid level monitoring circuit.
More Info
- Suitable for liquid level monitoring and control applications.
- Designed for use where accurate liquid level detection is needed.
| Operating Voltage (V) | 100V DC (Max Switching) |
|---|---|
| Operating Current (mA) | 500mA (Max Switching) |
| Operating Temp (°C) | -30°C to +120°C |
| Dimensions (mm) | 150mm x 10mm (Switch Length x Thread Diameter) |
| Mounting Type | M10 Thread |
| Output Type | Digital |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Chipset | ZS15010 |
