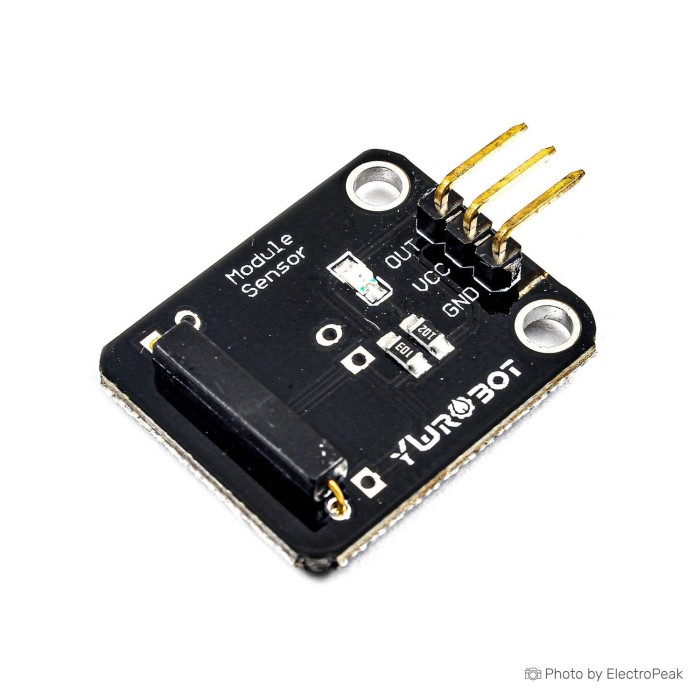

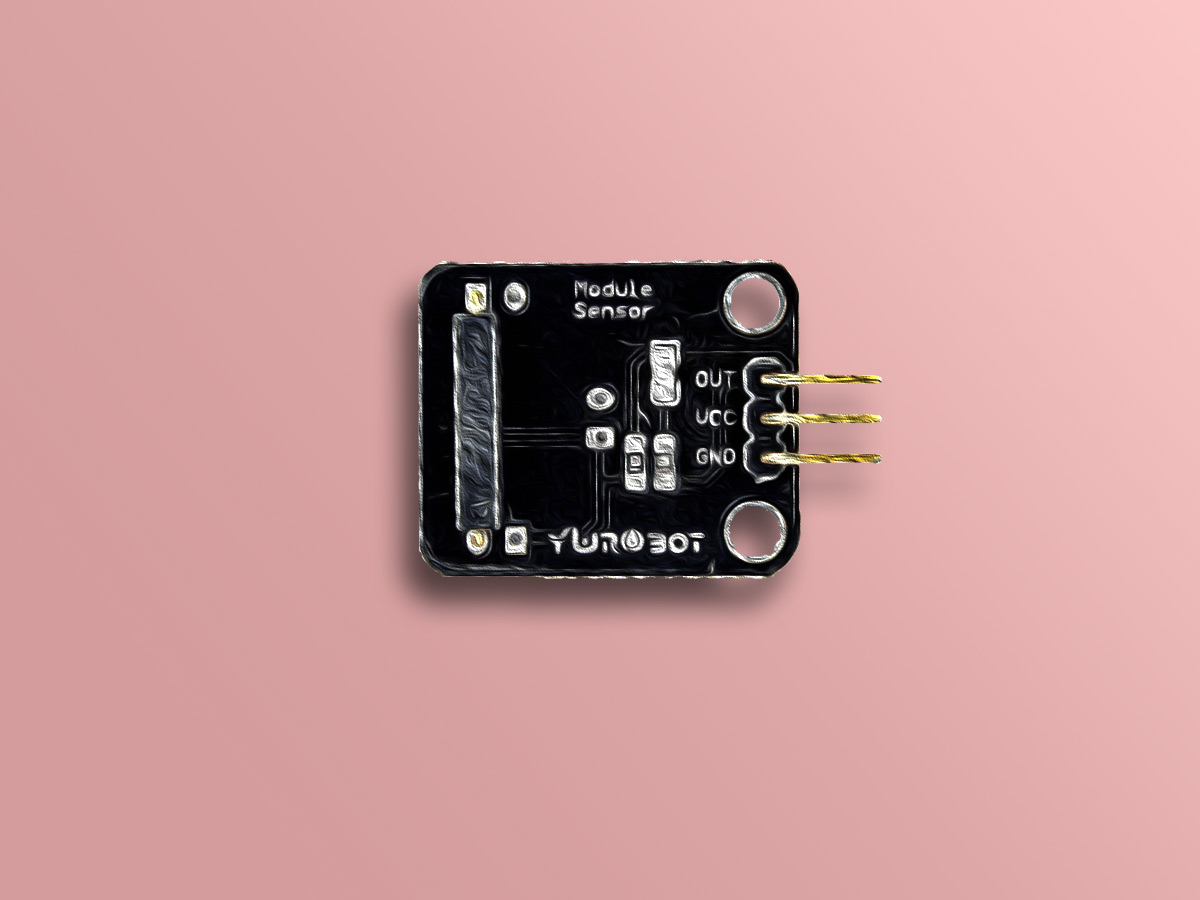

YwRobot Reed Switch Magnet Sensor Module
$1.5100
In stock
SKU
SEN-09-022
Volume discounts:
- +50 4 % $1.4500
- +100 6 % $1.4200
- +300 8 % $1.3900
- +500 10 % $1.3600
- +1000 12 % $1.3300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MC-38 Magnetic Sensor Anti Theft Alarm Previous
The YwRobot Reed Switch Magnet Sensor Module is a magnetic sensor module designed for detecting magnetic fields and switching output states accordingly. It uses a reed switch that changes state when exposed to magnetism. The module provides a digital output and includes LED output indication. It is suitable for Arduino-based electronics and robotics projects. The module is simple to operate and does not require complex setup.
Features of YwRobot Reed Switch Magnet Sensor Module - 3.3V, 5V
- Magnetic field detection
- Digital output
- LOW output on activation
- LED output indication
- Arduino compatible interface
- Easy setup
Specifications of YwRobot Reed Switch Magnet Sensor Module - 3.3V, 5V
- Dimensions: 21x25 mm
- Voltage: 3.3V
- Voltage: 5V
- Output Type: Digital
- Output State: LOW when activated
- Interface: Arduino compatible
- Platform: Arduino
- Feature: LED output indication
- Setup: Easy and without complex configuration
How to Use YwRobot Reed Switch Magnet Sensor Module - 3.3V, 5V
- Connect the module to the digital pins of an Arduino board.
- Use Arduino code to read the switch state.
- Place the module in a magnetic field to trigger the LOW output.
More Info
- Reed switch operation depends on the presence of a magnetic field.
- The module can be used in electronics and robotics projects.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.3V, 5V |
| Dimensions (mm) | 21x25 mm |
| Mounting Type | Screw holes |
| IP Rating | None |
| Output Type | Digital |
| Probe Type | Non-contact |
| Relay Output | No |
