MC-38 Magnetic Sensor Anti Theft Alarm
$0.4500
In stock
SKU
SEN-09-024
Volume discounts:
- +100 4 % $0.4300
- +500 7 % $0.4200
- +1000 9 % $0.4100
- +5000 11 % $0.4000
- +10000 13 % $0.3900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-91 MPU9250+BMP280 10-DOF 9-Axis Gyro Compass Accelerometer Module Previous

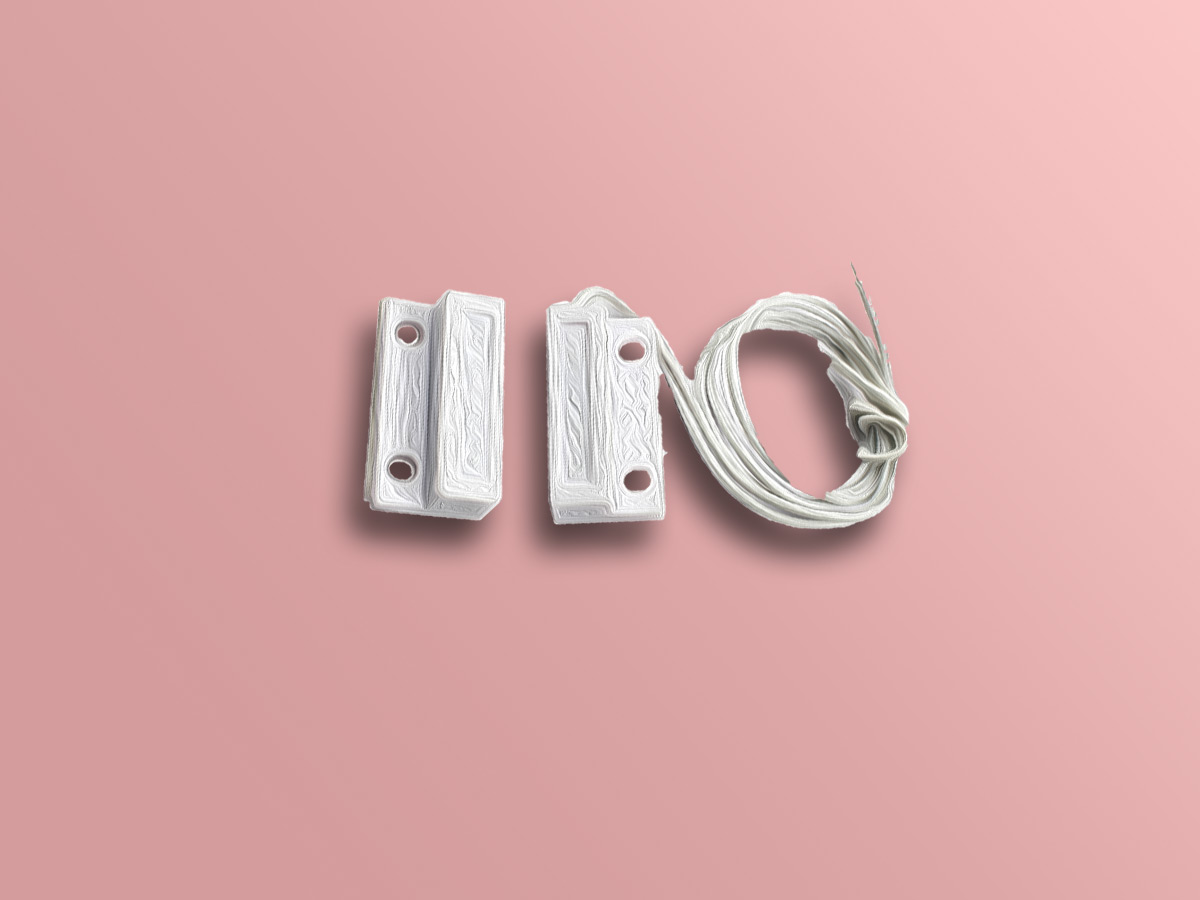

The MC-38 Magnetic Sensor Anti Theft Alarm is a wired magnetic switch for monitoring door and window open or closed status. It uses two parts, with one mounted on the door or window and the other on the frame. When the two parts are close together, the circuit remains closed. When they move apart, the circuit opens for alarm or status detection. This MC-38 magnetic sensor is designed for alarm and security system use.
Features of MC-38 Magnetic Sensor Anti Theft Alarm
- Wired magnetic switch
- Door and window status detection
- Normally closed contact
- Alarm system support
- Simple two-part construction
Specifications of MC-38 Magnetic Sensor Anti Theft Alarm
- Model: MC-38
- Material: ABS plastic
- Cable Length: Approx. 26cm
- Max Switching Current: 500mA
- Max Switching Voltage: 100V DC
- Output Power: 10W
- Working Distance: 15–25mm
- Connection Type: NC (Normally Closed)
- Color: White
- Dimensions: 28x15x0.9 cm
- Weight: 55g
How to Use MC-38 Magnetic Sensor Anti Theft Alarm
- Mount one part on the door or window.
- Mount the other part on the frame.
- Connect it to the alarm or monitoring circuit.
More Info
- The circuit is closed when the magnet and switch are close together.
- The circuit opens when the magnet and switch are separated.
| Operating Voltage (V) | 100V DC |
|---|---|
| Operating Current (mA) | 500 mA |
| Dimensions (mm) | 28 x 15 x 9 mm |
| Output Type | Digital |
| Measurement Range | 15 to 25 mm |
| Probe Type | Non-contact |
| Weight (g) | 55 |
| Chipset | MC-38 |
| Relay Output | No |
