XPT8871 Audio Amplifier Module - 6W, 1-Channel
$0.2900
In stock
SKU
SEN-17-084
Volume discounts:
- +100 3 % $0.2800
- +500 7 % $0.2700
- +5000 10 % $0.2600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TPA3110 Audio Amplifier Module - 30W, 1-Channel Previous

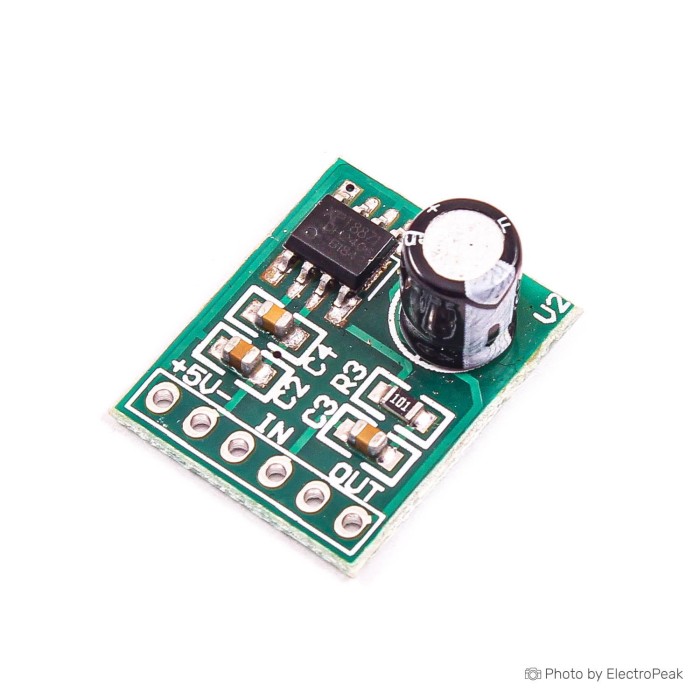

The XPT8871 Audio Amplifier Module is a mono digital audio amplifier designed for single-channel sound output. It provides 5 watts of mono output and operates from a 5 V DC supply. The module is based on the XPT8871 chip and is specified for 1 amp current. It is listed with efficiency above 85%. The module size is 20x16 mm and the weight is 10 grams.
Features of XPT8871 Audio Amplifier Module - 5W, 1-Channel
- Mono digital audio amplification
- Single-channel output
- 5W maximum power
- 5 V DC supply
- Efficiency above 85%
Specifications of XPT8871 Audio Amplifier Module - 5W, 1-Channel
- Chip: XPT8871
- Supply voltage: 5 V DC
- Current: 1 amp
- Power: 5 watts
- Efficiency: above 85%
- Size: 20x16 mm
- Weight: 10 grams
How to Use XPT8871 Audio Amplifier Module - 5W, 1-Channel
- Connect the module to a 5 V DC power supply.
- Integrate it into your audio project as a single-channel amplifier.
More Info
- Maximum power is specified under a 2Ω BTL speaker load.
- THD is listed as less than 10% when using a 5 V, 1 A power supply.
- The module is suitable for use with Arduino board projects.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 1000 |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 20 x 16 |
| Mounting Type | Soldering |
| Audio Function | Amplifier |
| Output Power | 5W |
| Speaker Impedance (Ω) | 2Ω |
| Weight (g) | 10 |
| Input Types | Analog |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 1-channel |
| Chipset | XPT8871 |
