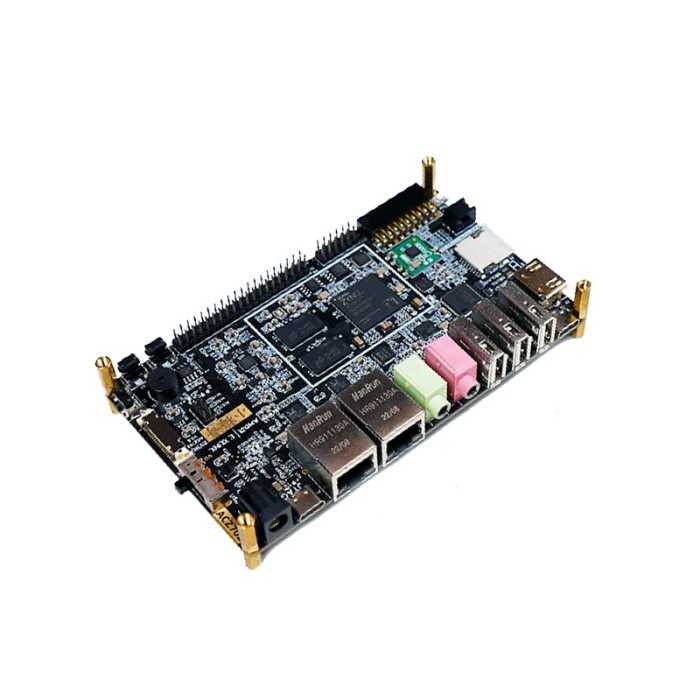

The Xilinx ACZ702 FPGA Development Board is a versatile platform designed for high-performance embedded systems. Featuring options between the XC7Z010-1CLGA400 and XC7Z020-1CLGA400 FPGAs, this board integrates a dual-core Cortex-A9 ARM processor with 280k logic cells, making it suitable for a wide range of applications. The board includes 512MB DDR3 RAM, 8GB of eMMC storage, and a rich set of peripherals such as Ethernet, WiFi, audio codec, HDMI, and USB interfaces, making it ideal for complex embedded projects.
Specifications of Xilinx ACZ702 FPGA Development Board
-
FPGA: XC7Z010-1CLGA400 or XC7Z020-1CLGA400 with dual-core Cortex-A9 ARM
-
Memory: 256MB DDR3 per module, 512MB total (MT41K128M16-125)
-
Storage: 8GB Samsung EMMC (KLM8G1GEM-B041), 128Mbit QSPI Flash (w25Q128VSSIQ), 64Kbit EEPROM (24LC64)
-
Networking: RTL8211F-CG RGMII interface, 10/100/1000 adaptive Ethernet, WiFi module (RTLB188FTV) with USB 2.0 interface
-
Audio: WM8960 Audio codec with amplifier, supports recording and playback
-
USB: USB3320 USB2.0 OTG chip, CH334 MTT structure 4-port USB2.0 HUB, USB Serial Port (CH343P)
-
Video Output: HDMI SII9022 supports up to 1920x1080 @ 60Hz
-
Debugging: JTAG18MOTHS2 dedicated Xilinx downloader chip
-
Real-Time Clock (RTC): PCF8563
-
Dimensions: 80.6 x 56.1mm
