VGA and HDMI Output Module For FPGA Xilinx ACZ702
$21.9500
In stock
SKU
MIC-05-013
Volume discounts:
- +25 4 % $21.0800
- +50 6 % $20.6500
- +100 8 % $20.2200
- +300 10 % $19.7800
- +500 12 % $19.3500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Xilinx ACZ702 FPGA Development Board Previous

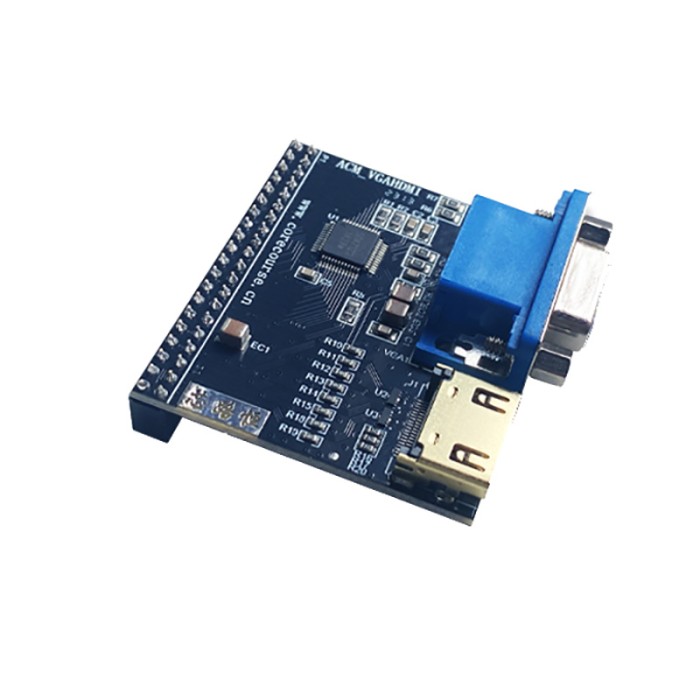

The VGA and HDMI Output Module For FPGA Xilinx ACZ702 (ACM_VGAHDMI) is designed to meet the display requirements of various FPGA projects. It supports both VGA and HDMI interfaces, providing flexibility for different display outputs. The module uses TMDS encoding for HDMI, enabling high-speed differential digital transmission with strong anti-interference capabilities, supporting resolutions up to 1080p. For VGA output, it employs the GM7123 chip, compatible with ADI's ADV7123, offering 24-bit color output at resolutions up to 1920x1080. The module connects seamlessly to several development boards such as ACZ702, ACZ702-CB, AC608, ACX720, and AC620 via a 40-pin expansion interface.
Specifications of VGA and HDMI Output Module For FPGA Xilinx ACZ702
-
Supported Interfaces: VGA and HDMI
-
HDMI Encoding: TMDS
-
HDMI Resolution: Up to 1080p
-
VGA Chip: GM7123 (Compatible with ADI ADV7123)
-
VGA Resolution: Up to 1920x1080, 24-bit color
-
Compatibility: ACZ702, ACZ702-CB, AC608, ACX720, AC620
-
Connector: 40-pin expansion interface
-
Dimensions: 50.7x45.7mm
Development Resources of VGA and HDMI Output Module For FPGA Xilinx ACZ702
Development Resources of VGA and HDMI Output Module For FPGA Xilinx ACZ702
| Interface Type | HDMI, VGA |
|---|---|
| Dimensions (mm) | 50.7x45.7mm |
| Mounting Type | Connector |
| Output Type | 24-bit color |
| Chipset | GM7123 |
| Protocols | TMDS |
