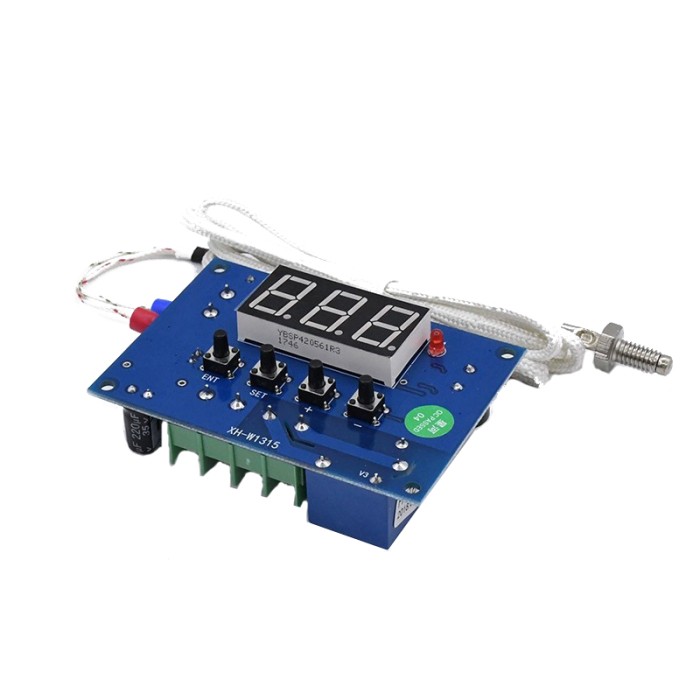

XH-W1315 High Temperature Digital Thermostat

The XH-W1315 High Temperature Digital Thermostat is a versatile temperature controller designed to manage a wide temperature range of -30°C to 999°C, making it suitable for various heating and cooling applications. It utilizes a K-type thermocouple for accurate temperature measurement and provides a simple, easy-to-use interface with a reliable industrial microcomputer control system. The thermostat can be used for both heating and cooling systems, making it ideal for industrial, domestic, or laboratory environments where precision temperature control is required.

Specifications of XH-W1315 High Temperature Digital Thermostat

• Model: XH-W1315

• Input Voltage: AC 220V

• Temperature Control Range: -30°C to 999°C

• Resolution: 1°C

• Temperature Measurement Accuracy: ±2°C

• Measurement Input: K-type thermocouple

• Output Type: 1 relay output

• Control Type: Position control

• Size: 75 x 54 x 21 mm

How to use of XH-W1315 High Temperature Digital Thermostat

1. Connecting the Power: Wire the power supply and load as per the schematic.

2. Setting the Temperature: Press the SET button, adjust the desired temperature using the + and - buttons, and confirm by pressing ENT.

3. Accessing Parameters: Long press the SET button to enter the parameters menu, select the parameter with the + and - buttons, and confirm with ENT.

4. Mode Settings:

   • Heating Mode (H): Set P0 to H for heating systems.

   • Cooling Mode (C): Set P0 to C for cooling systems.

5. Adjusting Hysteresis (P1): Set the temperature difference between switching on and off, useful for energy saving and reducing system wear.
