Thermometer Gauge WSS-401
SAVE
As low as
$3.7500
In stock
Only %1 left
SKU
SEN-10-114
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
XH-W1315 High Temperature Digital Thermostat
Previous

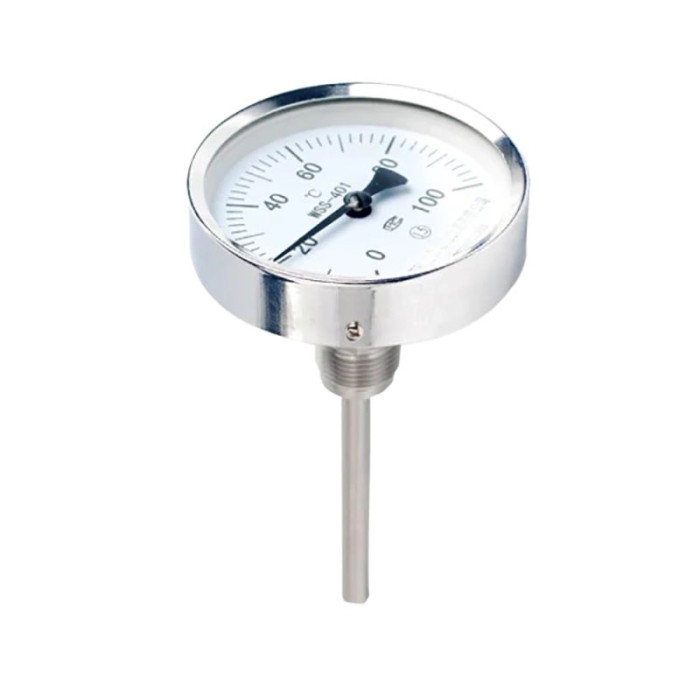

The WSS-401 Thermometer Gauge is a precision bimetallic temperature measurement instrument designed for a wide range of industrial and mechanical applications. With an accuracy of 1.5% and a range of -60 to 500ºC, it ensures reliable temperature monitoring in environments requiring high accuracy. Available in different size options for insertion length and stem diameter, this gauge can be customized for various mounting types such as thread or flange, making it versatile and adaptable. It is equipped with a stainless steel or brass stem, offering durability, and its IP65 protection rating ensures resistance to dust and water.
Specifications of Thermometer Gauge WSS-401
-
Accuracy: ±1.5%
-
Temperature Range: -60°C to 500°C
-
Available Options:
-
0-100°C
-
0-150°C
-
0-200°C
-
0-300°C
-
0-400°C
-
0-500°C
-
-
Protection Grade: IP65 (dust-tight and water-resistant)
-
Insertion Length: 75mm, 100mm, 150mm, 200mm (customizable)
-
Stem Material: 304 stainless steel or brass
-
Model Number Codes:
-
W: Temperature instrument
-
S: Metal expanded type
-
S: Bimetallic
-
Scale Diameter:
-
3: ø60
-
4: Ø100 *
-
5: Ø150
-
-
Structure form:
-
0: Angle type (axial) *
-
1: Straight way (radial)
-
8: Universal type
-
-
Mounting Type:
-
1: Movable male thread type *
-
2: Movable female thread type
-
3: Movable flange
-
-
Datasheet of Thermometer Gauge WSS-401
