XH-M603 Battery Charging Control Module
$1.7500
In stock
SKU
BAT-16-001
Volume discounts:
- +50 4 % $1.6800
- +100 6 % $1.6400
- +300 9 % $1.6000
- +500 10 % $1.5700
- +1000 13 % $1.5300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
IP2312 Lithium Battery Fast Charging Module - 3A Previous

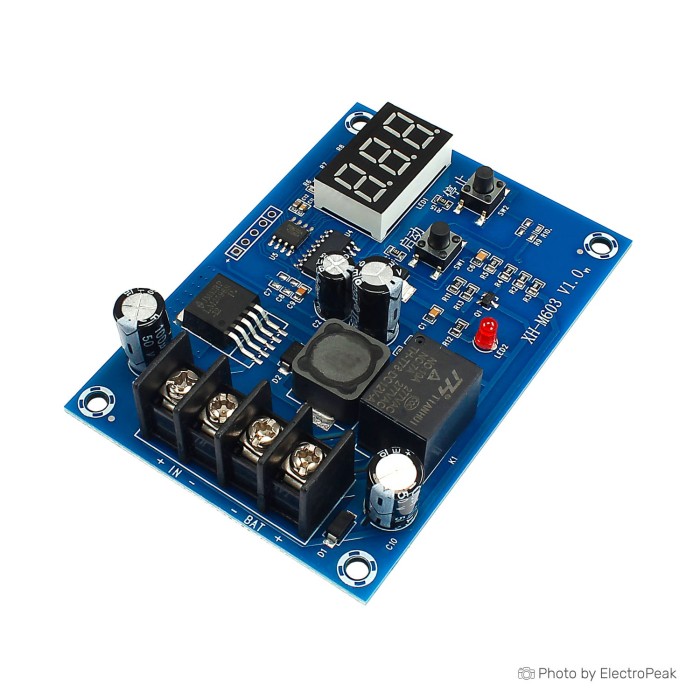

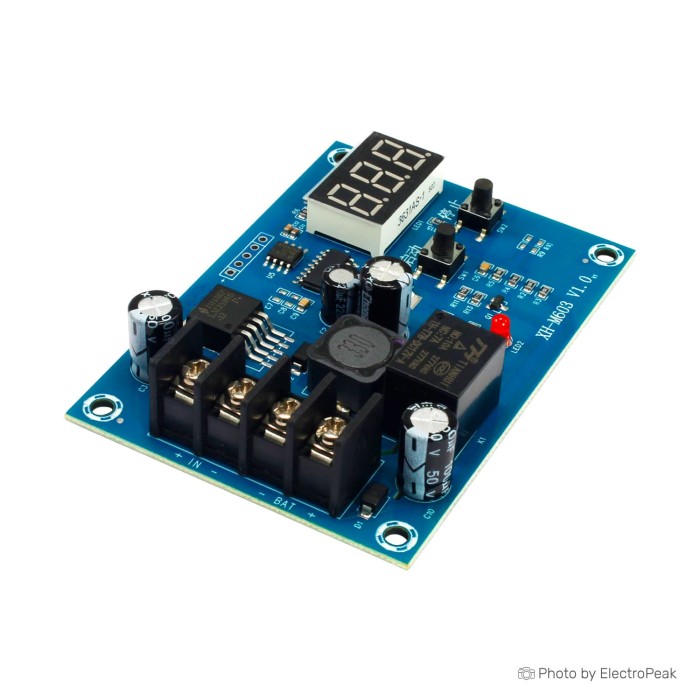

XH-M603 Battery Charging Control Module is a battery charging control module for managing charging and preventing overcharge. It includes a digital LED display for real-time battery voltage monitoring. The module supports adjustable charging cut-in and cut-off voltage settings. It uses an internal relay for automatic charger control. The XH-M603 is designed for 12V and 24V lead-acid batteries and operates from a 10-30V DC supply.
Features of XH-M603 Battery Charging Control Module
- Adjustable charge start voltage
- Adjustable charge stop voltage
- Digital LED voltage display
- Overcharge prevention
- Internal relay control
- Supports 12V and 24V lead-acid batteries
Specifications of XH-M603 Battery Charging Control Module
- Supply voltage: 10-30V DC
- Charging input voltage: 0-30V
- Maximum charging current: 10A
- Supported battery type: Lead-acid
- Supported battery voltage: 12V/24V
- Dimensions: 82x58x18 mm
- Operating temperature range: -10 to +50 °C
- Display voltage accuracy: ±0.1V
How to Use XH-M603 Battery Charging Control Module
- Connect the rechargeable battery to the BAT terminals with correct polarity.
- Set the start and stop voltages using the UP/START and DOWN/STOP buttons.
- Connect the battery charger to the IN input of the module.
- Use the default settings if needed by holding UP and DOWN for 3 seconds.
More Info
- The module is powered from the battery, not from the battery charger.
- Factory default settings are 12V start voltage and 14.5V stop voltage.
| Compatible With | 12V/24V Lead-acid batteries |
|---|---|
| Function | Battery Charging Control |
| Charging Voltage (Pack) | 0-30V |
| Supported Battery Type | Lithium (1-7 cells), Lead-acid (12-72V) |
| Input Voltage (V) | 10-30V DC |
| Output Voltage (V) | Direct Output |
| Output Current (A) | 10A |
| Connector | Terminal Block |
| Max Charging Current | 10A |
| Protection | Overcharge Protection,Over-discharge Protection,Short Circuit Protection,Thermal Protection |
| Display Type | LED |
| Dimensions (mm) | 82x58x18 |
| Mounting Type | Screw holes |
| Operating Temp (°C) | -10 to +50 °C |
