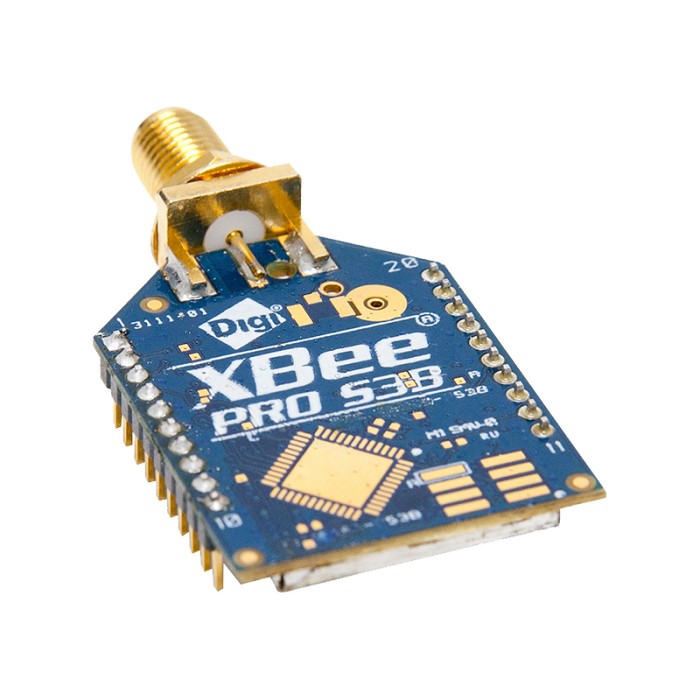

XBee-PRO, 900HP (S3B), DigiMesh, 900MHz, 250mW, RPSMA, 200Kbps (XBP9B-DMST-002)

The XBP9B-DMST-002 is a high-performance RF module designed for reliable wireless communication in the 900MHz frequency band. Utilizing Frequency Hopping Spread Spectrum (FHSS) modulation, this module offers robust data transmission at a data rate of 200kbps. It features a high power output of 24dBm and excellent sensitivity of -110dBm, making it suitable for long-range communication. The module supports SPI and UART serial interfaces, and it comes without an included antenna, featuring an RPSMA connector for external antenna options.

Specifications of XBP9B-DMST-002

• Modulation: FHSS

• Frequency: 900MHz

• Data Rate: 200kbps

• Power Output: 24dBm

• Sensitivity: -110dBm

• Serial Interfaces: SPI, UART

• Antenna Type: Antenna Not Included, RPSMA

• Utilized IC / Part: ADF7023

• Voltage - Supply: 2.4V ~ 3.6V

• Current - Receiving: 44mA

• Current - Transmitting: 229mA

• Mounting Type: Through Hole

• Operating Temperature: -40°C ~ 85°C

• Package / Case: Module

• Dimensions: ---

How to Use XBP9B-DMST-002

1. Connections:

   • Power Supply: Connect to a power source that provides 2.4V ~ 3.6V.

   • SPI/UART Interfaces: Connect to the appropriate serial interface on your microcontroller or host device.

   • Antenna: Attach an external antenna via the RPSMA connector for optimal signal transmission and reception.

2. Configuration:

   • Configure the module using the SPI or UART interface as per your application requirements.

   • Adjust parameters such as frequency channels, data rate, and power output through software commands.

3. Operation:

   • Ensure the module is powered and connected properly.

   • Use the SPI or UART interface to send and receive data.

   • Monitor the signal strength and quality to ensure reliable communication.
