E180-ZG120 Zigbee 3.0 Module
$8.2500
In stock
SKU
COM-10-001
Volume discounts:
- +25 8 % $7.6300
- +50 11 % $7.3100
- +100 15 % $7.0000
- +300 19 % $6.6900
- +500 20 % $6.6000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XBee CC2530 Long Range RF Transceiver Module Previous

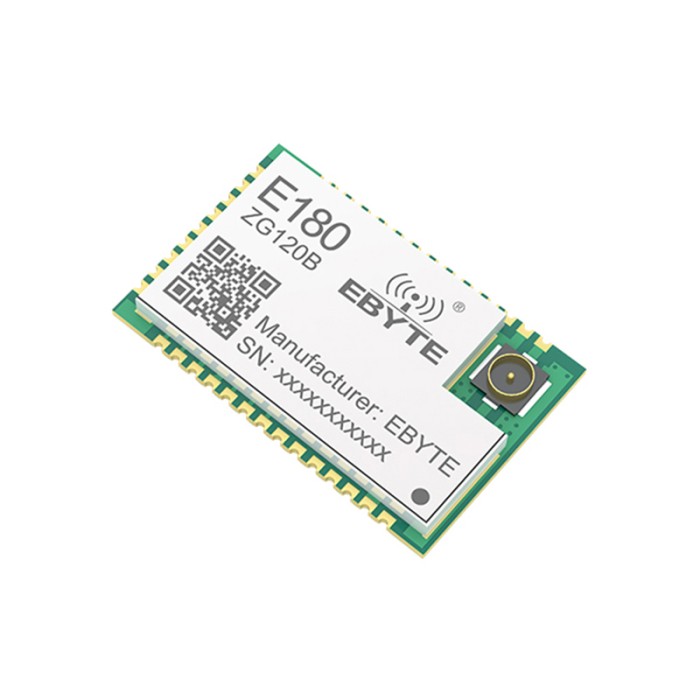

The EBYTE E180-ZG120 Zigbee 3.0 Module is a wireless module for IoT communication. It operates in the 2.4GHz frequency band and uses the Zigbee protocol. The module is designed for long-range communication and low-power operation. It supports UART interface integration with microcontrollers and other devices. The EBYTE E180-ZG120 is built around the EFR32MG1B232F256GM32 chip and is suitable for industrial and commercial IoT projects.
Features of EBYTE E180-ZG120 Zigbee 3.0 Module
- Zigbee protocol support
- 2.4GHz operation
- Long-range communication
- Low-power communication
- UART interface
- IoT-focused wireless module
Specifications of EBYTE E180-ZG120 Zigbee 3.0 Module
- Chip: EFR32MG1B232F256GM32
- Core: Cortex-M4
- Flash: 256KB
- RAM: 32KB
- Crystal frequency: 38.4MHz
- Frequency Band: 2.400~2.480GHz
- Protocol: Zigbee
- Range: Long-range communication capabilities
- Transmission Distance: 1km
- Interface: UART
- Operating Voltage: 3.3V
How to Use EBYTE E180-ZG120 Zigbee 3.0 Module
- Connect the module through the UART interface.
- Provide a 3.3V operating voltage.
- Integrate it with a microcontroller or other device.
More Info
- Datasheet: https://www.ru-ebyte.com/pdf-down.aspx?id=1853
- Manufacturer pages: E180-ZG120A and E180-ZG120B
| Interface Type | UART |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | SMD (Surface Mount) |
| Wireless Protocol | Zigbee 3.0 |
| Frequency Band | 2.4GHz |
| Data transmission rate | 250 kbps |
| Encryption | AES, 128-bit |
| RF Modulation | OQPSK |
| TX Power (dBm) | 20dBm |
| Range (m) | 1km |
| SIM Slots | 0 |
| Chipset | EFR32MG1B232F256GM32 |
| Application | IoT |
