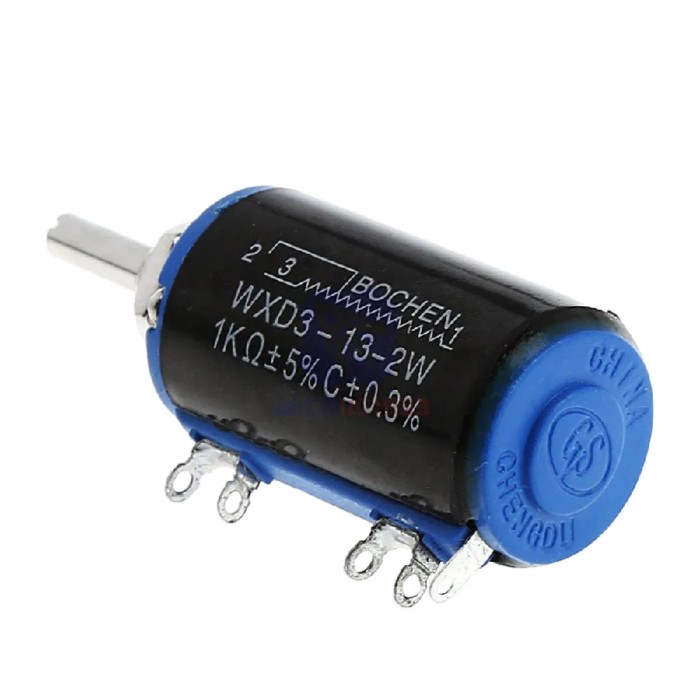

WXD3-13-2W Multi-turn Potentiometer

The WXD3-13-2W Multi-turn Potentiometer is designed for precise resistance adjustments in various electronic applications. This robust potentiometer operates effectively in harsh environmental conditions, offering stable performance with a rated power of 2W and impedance ranging from 100Ω to 100KΩ. It features a high dielectric strength and reliable rotational torque, making it ideal for fine-tuning and calibration tasks.

Specifications of WXD3-13-2W Multi-turn Potentiometer

• Rated Power: 2W

• Impedance: 100Ω to 100KΩ

• Rotational Torque: 50 ~ 500gf.cm, torque ratio of 1:3

• Dielectric Strength: Withstands 750V (50HZ AC RMS) for 1 minute

• Environmental Conditions:

  • Ambient Temperature: -55 to +100°C

  • Relative Humidity: Up to 98% at 40°C

  • Atmospheric Pressure: 107 ~ 4.4Kpa

  • Vibration: 10 ~ 500HZ, acceleration 49m/s²

  • Collision: 40 to 80 beats/min, acceleration 147m/s²

  • Centrifugal Force: Acceleration 147m/s²

• Dimensions: 60x20mm

• Constant Hot Flashes: ΔR/R ≤ ± 1% after 96 hours at 40 ± 2°C, 93 ± 3% relative humidity

• Electric Load: ΔR/R ≤ 1% after 48 hours of rated power load
