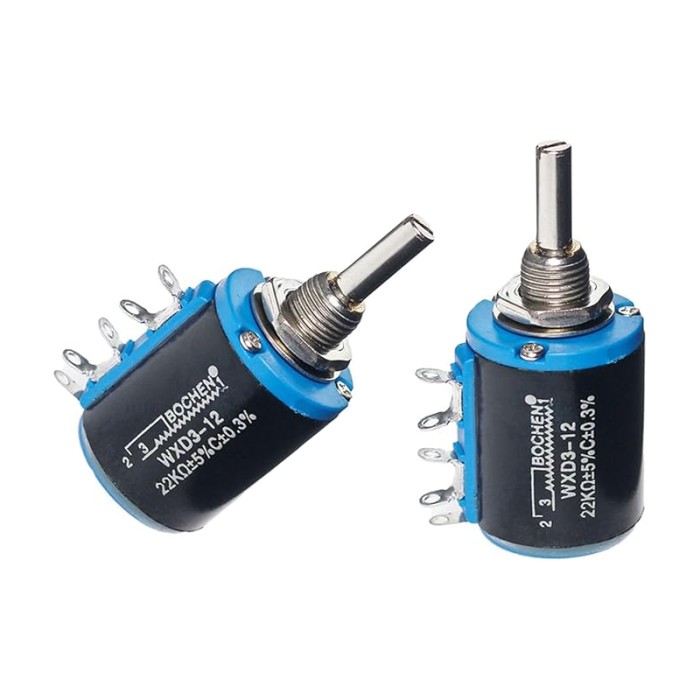

WXD3-12-1W Multi-turn Potentiometer Short Body

[P3-0098]
Shop with confidence Learn More
Availability: 1052 items
SKU
P3-0098
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$1.50

The WXD3-12-1W Multi-turn Potentiometer Short Body is a precision wire-wound potentiometer ideal for fine-tuning and calibration tasks in various electronic circuits. With a resistance range of 100Ω to 47KΩ and a rated power of 1W, this potentiometer ensures reliable performance and precise adjustments. Its compact size and robust design make it suitable for applications where space is limited.

Specifications of WXD3-12-1W Multi-turn Potentiometer Short Body

  • Standard Resistance Range: 100Ω to 47KΩ

  • Resistance Tolerance: ±5%

  • Independent Linearity: ±0.3%

  • Rated Power: 1W (at 55°C)

  • Voltage Rating: 160V

  • Total Mechanical Travel: 1800° ±20°

  • Starting Torque: 3.5-100mN.m

  • Dimensions: Short Body /></p>
