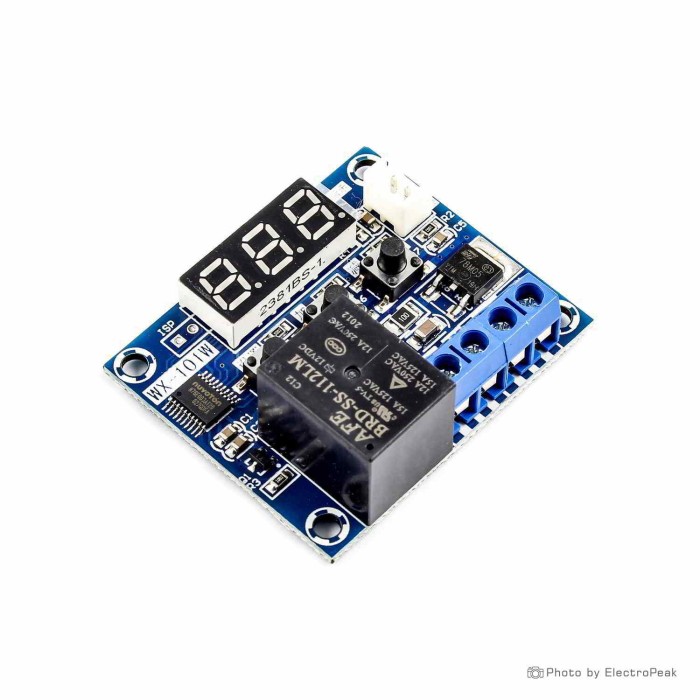

WX-101W Thermostat Temperature Control Switch Module

WX-101W Thermostat Temperature Control Switch Module is a digital temperature control module with a digital display for monitoring and setting temperature values. It uses an NTC10K temperature sensor and supports precise temperature control for heating and cooling projects. The module is designed for moment-to-moment temperature monitoring with a 0.5 second refresh rate. It also supports relay-based temperature switching and includes error indication when the sensor is disconnected or not sending data.

This WX-101W Thermostat Temperature Control Switch Module is suitable for applications that require adjustable control settings, clear temperature reading, and simple operation. The interface includes configurable operating modes, hysteresis, calibration, and delay timing. The temperature control range, measurement accuracy, and relay output capacity are included in the specifications below.

Features of WX-101W Thermostat Temperature Control Switch Module

• Digital temperature display
• Heating and cooling modes
• Adjustable hysteresis
• Temperature calibration support
• Delay time setting
• Error indication for sensor faults
• 1-channel relay output

Specifications of WX-101W Thermostat Temperature Control Switch Module

• Input power: DC12V
• Temperature control range: -40 -120 Degrees Celsius
• Measurement accuracy: 0.1 Degree Celsius. (-9.9 to 99.9 Degree Celsius) others 1 Degree Celsius
• Hysteresis accuracy: Default 0.1 Degree Celsius. (Tunable 0.1-20 Degree Celsius)
• Refresh rate: 0.5S
• Measuring inputs: Waterproof sensor
• Output: 1 Channel relay output, capacity = 12A
• Environmental requirements: -20 ~ 85 Degrees Celsius
• Temperature sensor: NTC10K
• Temperature sensor cable length: 50 cm
• Dimensions: 60x45x30 mm
• F-1 function: Heating/Cooling/Heating
• F-2 function range: 0.1-20
• F-2 default: 0.1
• F-3 function range: -5-+5
• F-3 default: 0
• F4 delay action time range: 0-10 min
• F4 default: 0

How to Use WX-101W Thermostat Temperature Control Switch Module

1. Press the SET key to enter the function settings.
2. Select the operating mode, hysteresis, calibration, and delay parameters.
3. Use the direction keys to adjust the required values.
4. Save the settings and connect the module for temperature control operation.

More Info

• EO is shown when the sensor is not connected or does not send data.
• The module supports simple and easy use.
