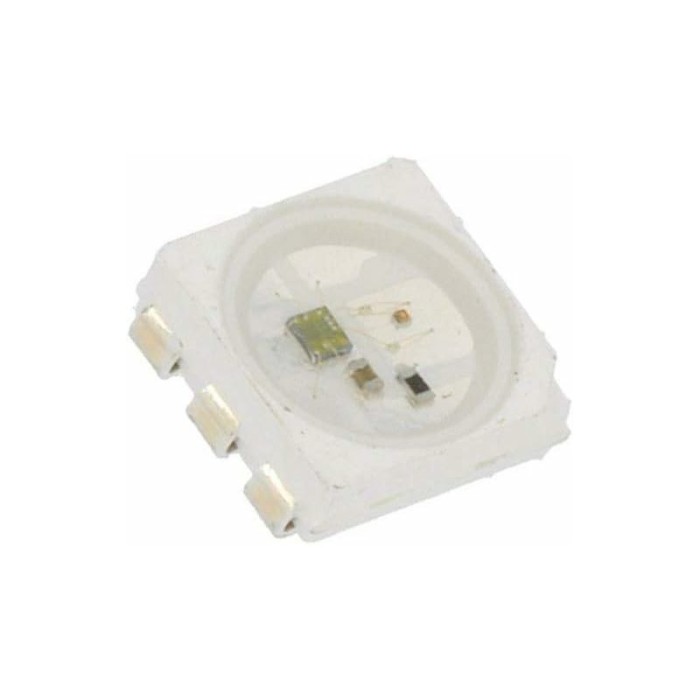

WS2813b RGB LED (SMD Package 5050)
$0.1100
In stock
SKU
L1-0046
WS2813b RGB LED (SMD Package 5050) is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
WS2813b RGBW LED (SMD Package 5050) Previous
WS2813B RGB LED is an intelligent control LED light source with the control circuit and RGB chip integrated into a 5050 package. It supports serial cascade operation with a single signal line for data reception and decoding. The LED includes intelligent reverse-connection protection for 5V power connections. Its built-in signal reshaping circuit helps maintain the signal waveform without distortion. Each pixel provides 256 gray levels and supports full-color display. The device supports up to 800Kbps data transmission and cascading of at least 1024 pixels at 30fps.
Features of WS2813B RGB LED - SMD 5050, 5V, 0.24W
- 5050 integrated package
- Single-line serial cascade
- Reverse-connection protection
- Signal reshaping circuit
- 256 gray levels per pixel
- Up to 800Kbps data rate
- 1024-pixel cascading support
Specifications of WS2813B RGB LED - SMD 5050, 5V, 0.24W
- Input Voltage: 5V DC
- Power: 0.24W per LED
- Refresh Frequency: 2kHz
- Gray Levels: 256 levels per pixel
- Interface: Serial cascade with a single signal line
- Protection: Intelligent reverse-connection protection
- Data Transmission Rate: Up to 800Kbps
- Maximum Cascading Pixels: 1024 pixels at 30fps
- Package: SMD 5050
How to Use WS2813B RGB LED - SMD 5050, 5V, 0.24W
- Connect the 5V DC power supply.
- Wire the single signal line for serial cascade communication.
- Configure the LED chain for the required pixel count.
More Info
- Suitable for lighting and display applications.
- Datasheet: https://electropeak.com/pub/media/wysiwyg/files/WS2813B.pdf
