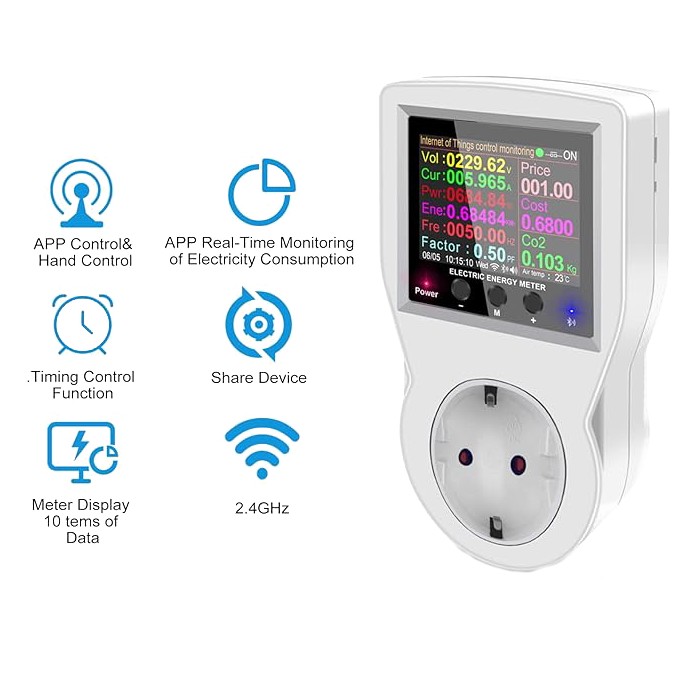

WiFi Smart Power Meter with Temperature Controller 16A

The WiFi Smart Power Meter with Temperature Controller (Model: S1W) is a versatile and intelligent device designed to monitor and control electrical appliances. With a capacity of up to 16A, this power meter can measure voltage, current, power, and energy consumption, providing real-time data on a 2.4-inch TFT-LCD screen. It also supports temperature monitoring with three sensor options: Normal NTC, Waterproof NTC, and Metal NTC. The device is compatible with Amazon Alexa, Google Home, and Smarthing, offering seamless voice control. It comes with a built-in safety mechanism, protecting against overcurrent, overvoltage, and overpower conditions.

Specifications of WiFi Smart Power Meter with Temperature Controller

• Model: S1W

• Material: ABS + PC

• Measuring Voltage: AC 85-265V

• Measuring Current: 0-16A

• Internal Relay: 16A (3680W)

• Power Measurement: Max 3680W

• Energy Measurement Range: 0 ~ 1999kWh

• Accuracy: +1%

• Wireless Consumption: < 0.3W

• Frequency: 50 / 60Hz

• Power Factor: 0-1.00PF

• Working Temperature: -10°C ~ +60°C

• WiFi Frequency: 2.412 ~ 2.484 MHz

• Working Humidity: < 80%

• Security Type: WEP64 / WEP128 / TKIP / CCMP (AES)

• Dimensions: 133 x 76 x 73mm

• Weight: 160g

• Screen Type: 2.4-inch TFT-LCD HD Display Panel (240 x RGB x 320 Dot-matrix)

Features of WiFi Smart Power Meter with Temperature Controller 16A

• Remote control and timer function via Tuya/Smart Life App

• Over-current, over-voltage, and over-power protection

• Countdown and cycle timing functions

• Energy measurement with electricity bill calculation

• Supports Amazon Alexa, Google Home, and SmartThings

• Real-time power consumption monitoring with large screen digital display

• Only supports 2.4G Wireless Network

Development Resources of WiFi Smart Power Meter with Temperature Controller 16A

Datasheet: Not available
