Temperature and Humidity Sensor for Sonoff TH Elite Controller

The "Temperature and Humidity Sensor for Sonoff TH Elite Controller" is a versatile sensor set designed to monitor environmental conditions with high accuracy. Sonoff TH Elite Controller supports the THS01, DS18B20, and MS01 sensors, each offering specific measurements like temperature, humidity, and soil moisture. You can use the RL560 sensor extension cable to extend the reach of your sensors. Each sensor connects easily via RJ11 connectors, ensuring seamless integration with your Sonoff TH Elite Controller.

Specifications of Temperature and Humidity Sensor for Sonoff TH Elite Controller

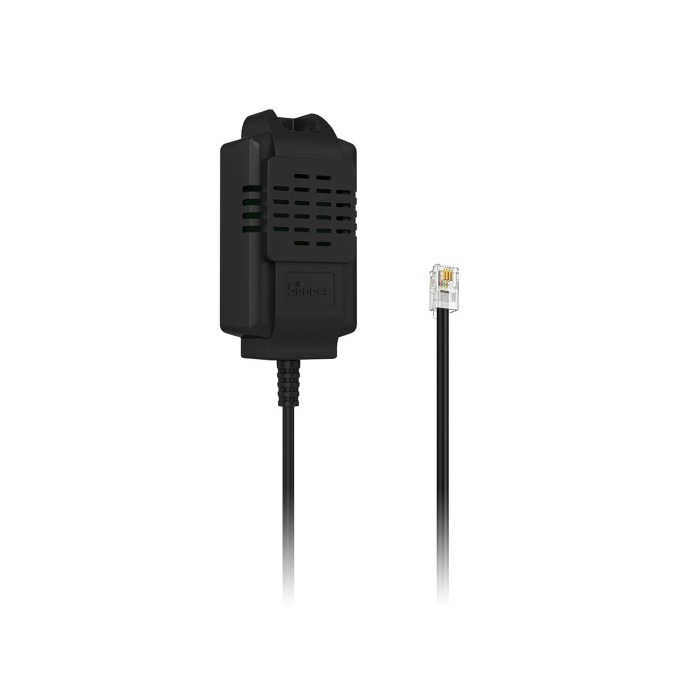

• THS01

  • Sensor type: Temperature and humidity sensor

  • Connector type: RJ11 4P4C

  • Temperature measurement range: –40 ℃ to +85 ℃

  • Humidity measurement range: 0% to 100% RH

  • Cable length: 500mm

• DS18B20

  • Sensor type: Waterproof temperature sensor

  • Connector type: RJ11 4P4C

  • Working temperature: -55 ℃ to +125 ℃

  • Cable length: 500mm

• MS01

  • Sensor Type: Soil Moisture Sensor

  • Humidity measurement range: 0% to 100% RH

  • Operating temperature range: 0 ℃ to 60 ℃

  • Cable length: 500mm.

• RL560 Extension Cable

  • Conductor resistance: Max. 10Ω

  • Insulation resistance: Min. 5MΩ

  • Length: 5000mm cable length, max. extendable to 60000mm
