WeMos D1 Mini RTC Shield DS1307
$1.2500
In stock
SKU
MOD-06-003
Volume discounts:
- +50 5 % $1.1900
- +100 7 % $1.1600
- +300 10 % $1.1300
- +500 12 % $1.1000
- +1000 14 % $1.0700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Multifunction Delay Trigger Timing Chip Module Previous

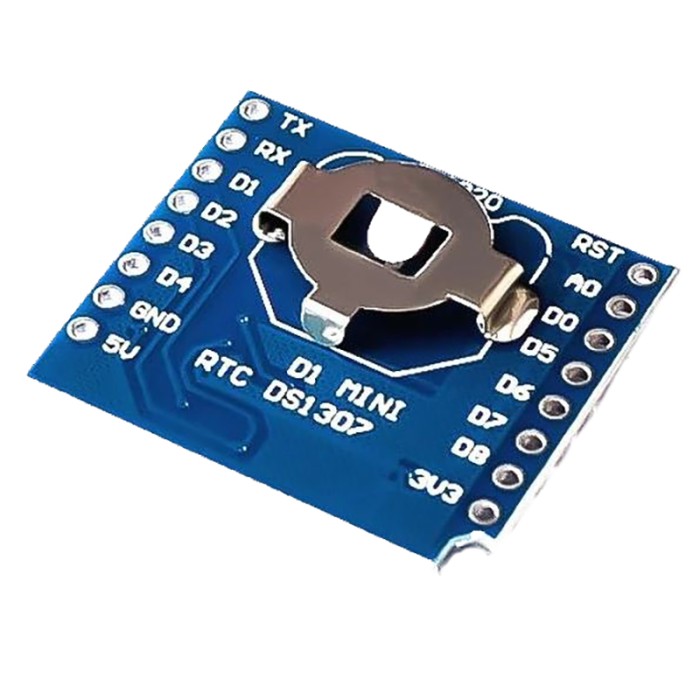

The WeMos D1 Mini RTC Shield DS1307 is a Real-Time Clock (RTC) shield designed for use with WeMos D1 Mini and other ESP8266/ESP32 boards. It allows your microcontroller to keep track of accurate time, even when it is powered off, by using the DS1307 chipset. The shield communicates via the I2C protocol and comes with a backup battery slot for continued operation during power interruptions.
Specifications of WeMos D1 Mini RTC Shield DS1307
-
Operating Voltage: 3.3VDC
-
RTC Chipset: DS1307
-
I2C Control Pins: D2 (SDA), D1 (SCL)
-
I2C Address: 0x68
-
Backup Battery Type: CR1220 (3.0VDC)
-
Communication Protocol: I2C
-
Timekeeping: Maintains time in case of power failure with battery backup
-
Dimensions: 28.2x25.6x5mm
Datasheet of WeMos D1 Mini RTC Shield DS1307
[Datasheet: Not available]
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Temp (°C) | 0 to 70 |
| Dimensions (mm) | 28.2x25.6x5mm |
| Mounting Type | Plug-in shield |
| Device Type | Real Time Clock (RTC) |
| Clock Accuracy (ppm) | ±20ppm |
| Chipset | DS1307 |
| Alarm | No |
| Functions | Maintains time in case of power failure with battery backup, Timekeeping |
| Output Type | I2C |
