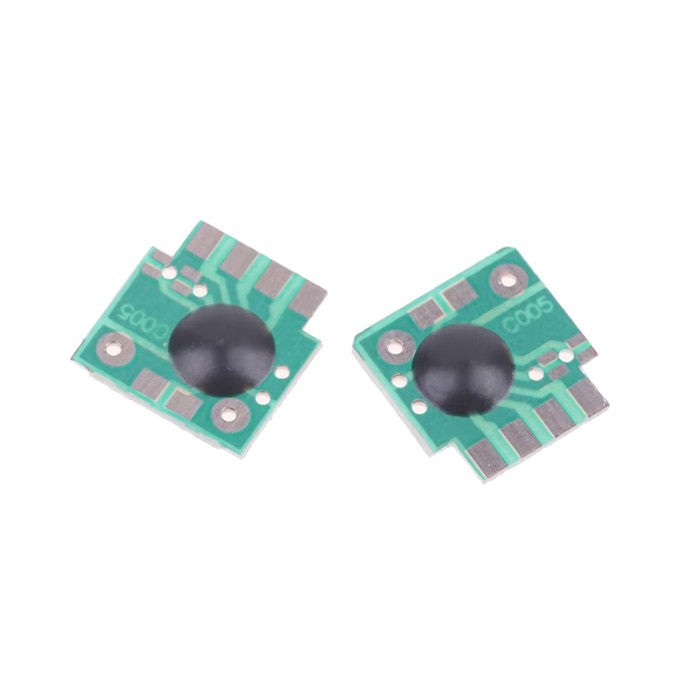

Multifunction Delay Trigger Timing Chip Module
$1.2500
In stock
SKU
MOD-06-002
Volume discounts:
- +50 5 % $1.1900
- +100 6 % $1.1700
- +300 9 % $1.1400
- +500 11 % $1.1100
- +1000 14 % $1.0800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Wireless Network Timing Electronic WIFI Clock with Digital Display Previous
The Multifunction Delay Trigger Timing Chip Module is a versatile timing module designed for various applications that require precise delay control. It operates with a working voltage of 2V-5V and can set timing durations from 2 seconds to 1000 hours. The module features a "falling edge" trigger system, which changes the output from high to low, initiating the timing process. Once the set time is reached, the output returns to a high level. This non-repeat trigger type ensures that the trigger is only activated once during each timing cycle.
Specifications of Multifunction Delay Trigger Timing Chip Module
-
Dimensions: 12x12mm
-
Working Voltage: 2V-5V
-
Timing Range: 2 seconds to 1000 hours
-
Trigger Type: Falling edge (high to low transition)
-
Standby Output: High level
-
Chip Technology: CMOS, low power consumption
-
Output Capabilities: Can drive LEDs with current-limiting resistors or push transistors
Datasheet of Multifunction Delay Trigger Timing Chip Module
| Operating Voltage (V) | 2V-5V |
|---|---|
| Dimensions (mm) | 12x12 |
| Device Type | Timer |
| Relay Channels | No |
| Timing Range | 2 seconds to 1000 hours |
| Functions | Timing |
| Output Type | Digital |
