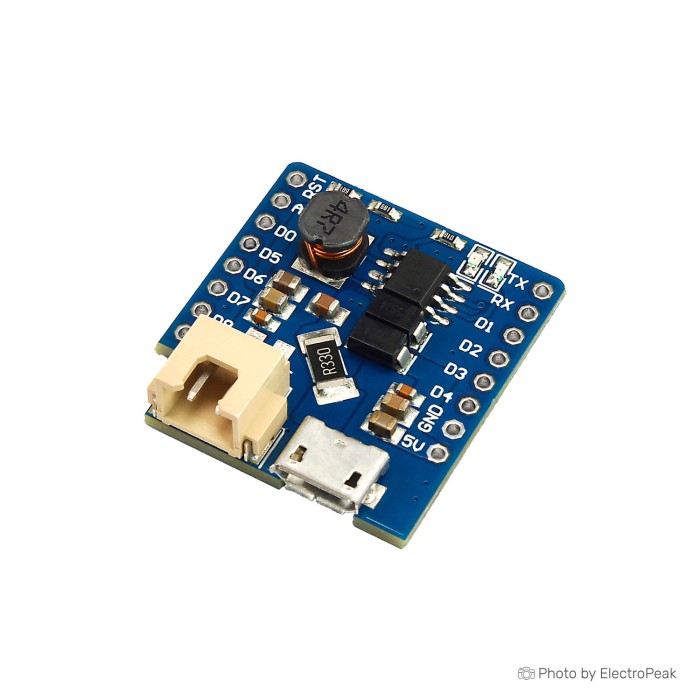

Wemos D1 mini Battery Shield

$0.6500
In stock
SKU
BAT-16-005
Volume discounts:
  • +100 6 % $0.6100
  • +300 8 % $0.6000
  • +500 11 % $0.5800
  • +1000 12 % $0.5700
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
TP4056 18650 Li-ion USB Type-C Battery Charger/Discharger Module - With Boost Converter Previous TP4056 18650 Li-ion USB Type-C Battery Charger/Discharger Module - With Boost Converter

Introducing the Wemos D1 mini Battery Shield - the perfect companion for your Wemos D1 mini development board. This battery shield is specifically designed to provide power and portability to your projects. With its compact size and lightweight design, it allows you to power your Wemos D1 mini using a rechargeable battery, making it ideal for applications where a continuous power supply is not available.

Equipped with a charging circuit and a battery connector, the Wemos D1 mini Battery Shield offers convenience and flexibility. It supports various battery types, including Li-Ion and Li-Po batteries, and provides a stable power output for your board. The shield also features an onboard voltage regulator, ensuring a consistent power supply to your Wemos D1 mini. Whether you're working on IoT projects, wearables, or remote monitoring systems, the Wemos D1 mini Battery Shield is a must-have accessory to enable wireless and portable operation.

Note: Please refer to the product documentation and specifications for detailed information on battery compatibility, charging, and usage instructions. The Wemos D1 mini development board is not included and must be purchased separately.

Specification of Wemos D1 mini Battery Shield:

  • Charging Voltage: 10V MAX 5V Recommended
  • Charging Current: 1A
  • Lithium Battery Voltage: 3.3-4.2V
  • Boost Power Supply: 5V (Max 1A)
  • Ports:
  • XH2-2.54mm (Port 1): Connect to lithium battery (3.3-4.2V)
  • Micro USB: Charging Port (5V)
  • Green LED: Illuminates when charging is complete
  • Red LED: Illuminates when charging is in progress
  • J1: Sets the maximum charging current: 0.5A or 1A
