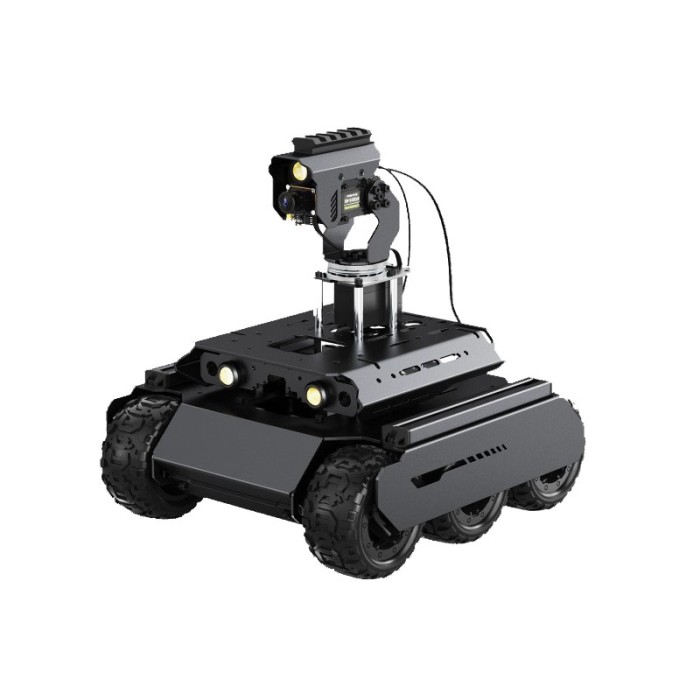

The Waveshare UGV Rover Robot is a robust unmanned ground vehicle (UGV) designed for use with the Raspberry Pi 4B and Raspberry Pi 5 (Raspberry Pi not included). It is ideal for developers and researchers working on robotics and automation. Equipped with a 2-DOF pan-tilt system using the high-torque ST3215 servos, this rover offers precise control and a wide 160° camera field of view for enhanced visual data capture. The rover is powered by a 3S UPS module, supporting up to three 18650 lithium batteries (not included) and is compatible with Debian Bookworm and ROS2-HUMBLE-LTS for programming flexibility.
Specifications of Waveshare UGV Rover Robot
-
Host System Support: Debian Bookworm
-
ROS2 Version: ROS2-HUMBLE-LTS
-
Pan-Tilt DOF: 2
-
Pan-Tilt Servo Torque: 30KG.CM
-
Pan-Tilt Servo Model: ST3215 Servo
-
Camera FOV: 160°
-
Power Supply: 3S UPS Module
-
Battery Support: 18650 lithium battery x 3 (not included)
-
Control Methods: Web application / Jupyter Lab interactive programming
-
Max Speed: 1.3m/s
-
Chassis Height: 25mm
-
Number of Driving Wheels: 4
-
Total Number of Wheels: 6
-
Tire Diameter: 80mm
-
Tire Width: 42.5mm
-
Minimum Turning Radius: 0M (In-situ rotation)
-
Dimensions: 230.42×252.40×254.53mm
-
Weight: 2190±5g
Datasheet of Waveshare UGV Rover Robot
Development Resources:
Waveshare UGV Rover
Waveshare UGV Rover Wiki
