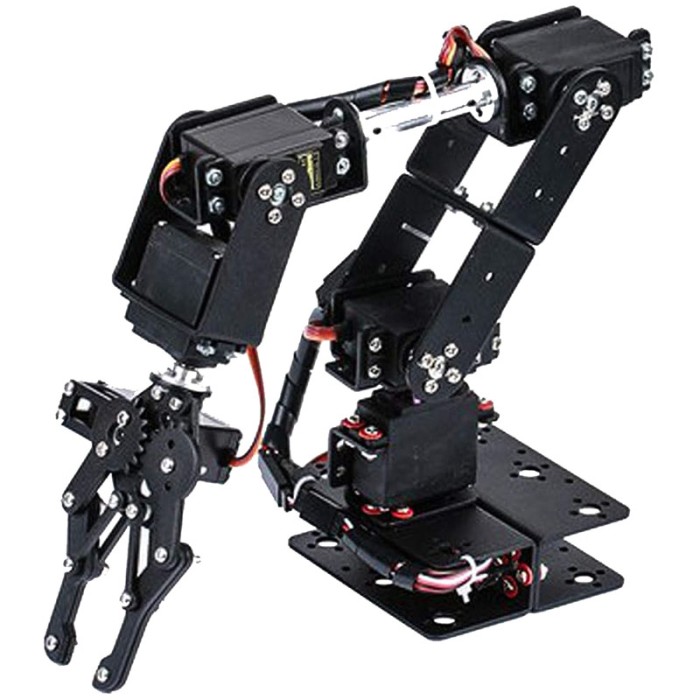

The 6-DOF Robotic Arm is a versatile teaching and demonstration platform designed for university education, maker activities, and personal DIY projects. Featuring a six-degree-of-freedom design, this robotic arm is capable of complex movements in multiple directions, making it ideal for illustrating concepts of robotics and automation. Constructed with a durable 2mm thick aluminum frame, it is equipped with six high-torque MG996R metal gear servos for precise and stable movements. Its smooth operation is enhanced by imported cup bearings at the joints, allowing for flexible steering and accurate positioning. The claw is made of hard aluminum alloy, ensuring durability and strong grip capabilities.
Specifications of 6-DOF Robotic Arm
-
Frame Material: 2mm thick aluminum alloy
-
Servo Motor: MG996R (x6)
-
Servo Specifications:
-
Torque: 9.4kg/cm (4.8V), 11kg/cm (6V)
-
Reaction Speed: 0.17sec/60° (4.8V), 0.14sec/60° (6V)
-
Working Voltage: 4.8V - 7.2V
-
Working Temperature: 0°C - 55°C
-
Gear Type: Metal
-
Dead Zone: 5us (microseconds)
-
Dimensions: 40.7 × 19.7 × 42.9 mm
-
-
Claw Specifications:
-
Material: Hard aluminum alloy
-
Weight: 64g (without servo), 129g (with servo)
-
-
Bearing Type: Cup bearings for smooth rotation and enhanced precision
-
Base Type: Disc form for flexible left-right rotation
-
Power Supply: External adapter required
-
Dimensions: ---
-
Operating Temperature: 0°C - 55°C
Package
-
Multifunctional bracket x5
-
Long U bracket x3
-
U beam x2
-
25T servo horn x6
-
L bracket x1
-
Bearing x3
-
Claw x1
-
Screws
-
996 servo x6
Datasheet of 6-DOF Robotic Arm
Datasheet: Not available.
