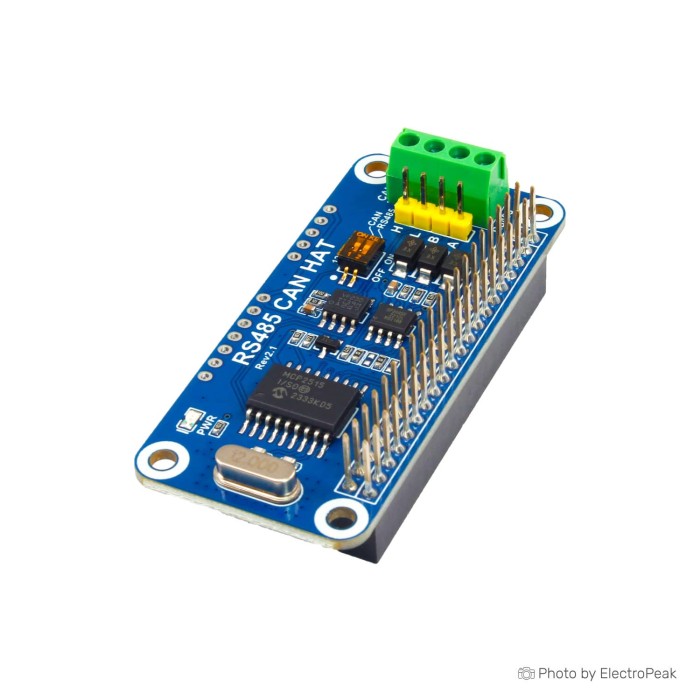

The Waveshare RSD485/CAN HAT for Raspberry Pi Zero is a versatile expansion board designed to provide RS485 and CAN communication capabilities to your Raspberry Pi Zero. This HAT allows for reliable and robust communication with various industrial devices and networks. Ideal for applications requiring long-distance and high-speed data transmission, the Waveshare RSD485/CAN HAT enhances the functionality of your Raspberry Pi Zero for use in automation, robotics, and industrial control systems.
Key features of Waveshare RSD485/CAN HAT for Raspberry Pi Zero
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SIT65HVD230DR
- RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
- Onboard 120Ω terminal resistor for RS485 and CAN interfaces, enabled via DIP switch
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
- Reserved control header, allows working with other control boards
- Comes with online development resources and manual (examples in wiringPi/python)
Specifications of Waveshare RSD485/CAN HAT for Raspberry Pi Zero
- CAN controller: MCP2515
- Operating voltage: 3.3V
- CAN transceiver: SIT65HVD230DR
- Mounting hole size: 3.0mm
- 485 transceiver: SP3485
- Dimension: 65×30mm
