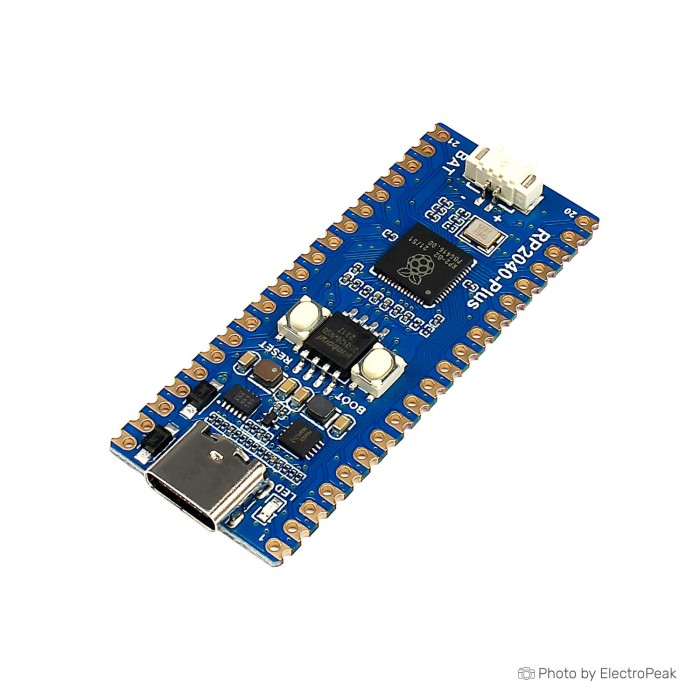

Waveshare RP2040-Plus Based on Raspberry Pi Pico RP2040
$7.9500
In stock
SKU
MIN-01-152
Volume discounts:
- +25 4 % $7.6200
- +50 6 % $7.4500
- +100 8 % $7.2900
- +300 10 % $7.1200
- +500 13 % $6.9500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Raspberry Pi 500+ - 16GB - US Layout Previous
The Waveshare RP2040-Plus is a microcontroller board based on the RP2040 and designed to extend the capabilities of the Raspberry Pi Pico platform. It features a dual-core ARM Cortex M0+ processor running up to 133 MHz. The board includes onboard SRAM, onboard Flash memory, a USB-C connector, and a lithium battery recharge/discharge header. It also adds a micro-SD card slot and a pre-soldered header for easier integration in electronics and robotics projects. The RP2040-Plus supports C/C++ and MicroPython programming.
Features of Waveshare RP2040-Plus Microcontroller Board
- RP2040 microcontroller chip
- Dual-core ARM Cortex M0+ processor
- Up to 133 MHz clock speed
- USB-C connector
- Lithium battery recharge/discharge header
- Micro-SD card slot
- Pre-soldered header
- C/C++ support
- MicroPython support
Specifications of Waveshare RP2040-Plus Microcontroller Board
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM
- 16MB of on-board Flash memory
- USB-C connector
- Lithium battery recharge/discharge header
- Onboard DC-DC chip MP28164
- High efficiency DC-DC buck-boost chip
- Maximum 2A load current
- Castellated module
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 multi-function GPIO pins
- 2 SPI interfaces
- 2 I2C interfaces
- 2 UART interfaces
- 3 12-bit ADC channels
- 16 controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 Programmable I/O (PIO) state machines for custom peripheral support
How to Use Waveshare RP2040-Plus Microcontroller Board
- Connect the board through the USB-C connector.
- Load your project using C/C++ or MicroPython.
- Use the GPIO pins and communication interfaces for your circuit.
More Info
- Suitable for electronics and robotics projects.
- Includes onboard storage and expanded I/O options.
| MCU/SoC | RP2040 |
|---|---|
| Product Family | Raspberry Pi Pico |
| Architecture | Arm Cortex-M0+ |
| CPU Cores | Dual-core |
| Clock Speed (MHz) | 133 MHz |
| Flash | 2MB,16MB,4MB |
| SRAM | 264KB |
| External Memory | micro-SD card slot |
| GPIO Pins | 26 |
| SPI interface Pins | 2 |
| I2C interface Pins | 2 |
| UART interface Pins | 2 |
| USB Ports | USB-C, USB 1.1 |
| CAN Bus Support | No |
| Ethernet Support | No |
| ADC Channels | 3 |
| DAC Channels | No |
| PWM Channels | 16 |
| Timers Count | Accurate clock and timer on-chip |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| Wireless | No |
| Form Factor | Castellated module |
| IDE Support | MicroPython, C/C++ |
| Input Voltage (V) | 5V via USB-C |
| Antenna Type | No |
| Bluetooth Ver. | No |
