Waveshare Human Micro-Motion Detection 24GHz mmWave Sensor
$2.9500
In stock
SKU
SEN-24-038
Volume discounts:
- +25 4 % $2.8300
- +100 6 % $2.7800
- +300 8 % $2.7200
- +500 10 % $2.6600
- +1000 12 % $2.6000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
IR Hand Sweep Sensor Module 12V Previous

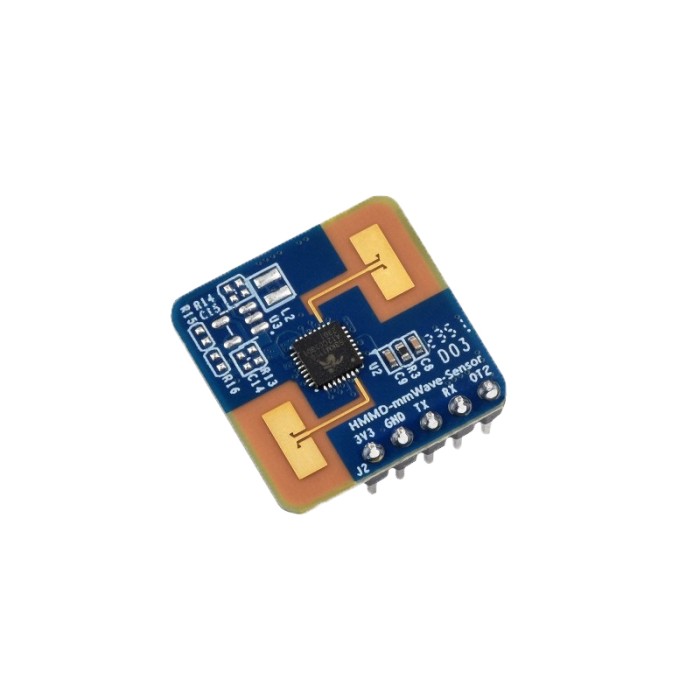

The Waveshare Human Micro-Motion Detection 24GHz mmWave Sensor (Model: S3KM1110) is a highly sensitive radar sensor designed for detecting human movement and micro-motions. It operates within the 24~24.25GHz frequency band with FMCW modulation, making it ideal for security, home automation, and other detection systems. With a detection range of up to 10 meters for moving human targets and 6 meters for micro-motion targets, the sensor delivers accurate detection with a resolution of 0.7m and operates efficiently at 3.3V.
Specifications of Waveshare Human Micro-Motion Detection 24GHz mmWave Sensor
-
Model: S3KM1110
-
Frequency Band: 24~24.25GHz
-
Bandwidth: 0.25GHz
-
Modulation: FMCW
-
Power Supply: 3.3V
-
Output Interface: UART & GPIO
-
UART Baudrate: 115200bps (default)
-
Environment Temperature: -40~85℃
-
Detection Range (Wall-Mounted): Moving human target: 10m, Micro-motion human target: 6m
-
Detection Range (Top-Mounted): Moving human target: 5m, Micro-motion human target: 4m
-
Detection Distance Resolution: 0.7m
-
Detection Accuracy: 0.15m (within 10m)
-
Detection Angle: ±60°
-
Average Operating Current: 50mA
-
Data Refresh Cycle: 100ms
-
Dimensions: 20mm x 20mm
Datasheet of Waveshare Human Micro-Motion Detection 24GHz mmWave Sensor
Manufacture of Waveshare Human Micro-Motion Detection 24GHz mmWave Sensor
| Interface Type | Digital, UART |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Current (mA) | 50 |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 20mm x 20mm |
| Output Type | UART |
| Accuracy | 0.15m |
| Resolution | 0.7m |
| Measurement Range | Moving target: 10m, Micro-motion: 6m |
| Sampling Rate (Hz) | 100ms |
| Push Button | No |
| Sensor Type | Microwave Motion Detector |
| Measurement Principle | FMCW Radar |
| Supply Current | mA |
| Chipset | S3KM1110 |
| Detection Angle (°) | ±60° |
