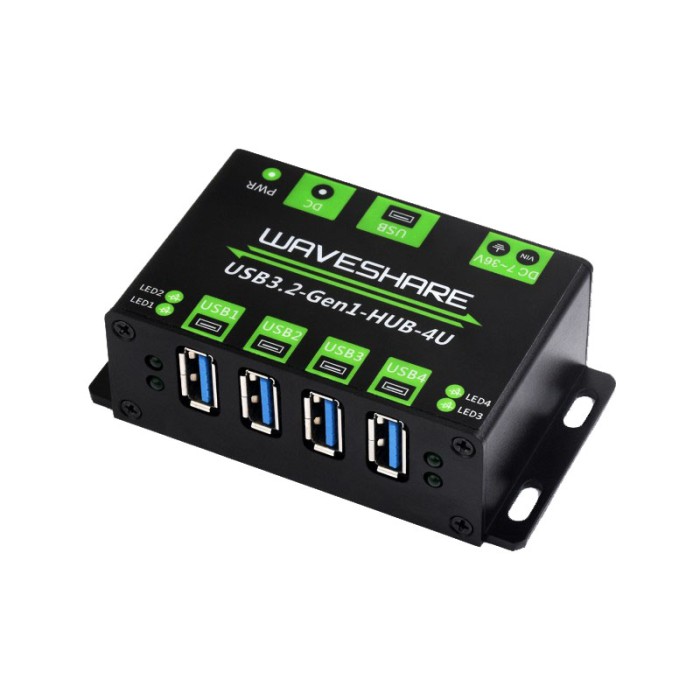

Waveshare 4-way USB3.2 HUB Industrial Isolation

The Waveshare 4-way USB3.2 HUB Industrial Isolation is a high-performance hub designed to meet the needs of industrial applications. This hub supports USB 3.2 Gen1 with data transfer speeds of up to 5Gbps and USB 2.0 at 480Mbps. It features 4 USB-A output ports, each capable of delivering up to 2A of current, with a total peak current of 5A across all ports. The hub is equipped with external power input support, operating within a voltage range of DC 7-36V. It is designed to work across a range of operating systems, including Windows, macOS, Linux, and Android, ensuring broad compatibility.

Specifications of Waveshare 4-way USB3.2 HUB Industrial Isolation

• Standard:

  • USB 3.2 Gen1: 5Gbps

  • USB 2.0: 480Mbps

• USB HUB Input Voltage: 5V

• USB Output:

  • Voltage: 5V

  • Current: Up to 2A per port, 5A total peak current for 4 ports

  • Connector: USB-A

• External Power Input:

  • Voltage: DC 7-36V

  • Connector: Screw terminal, DC jack

• Operating Environment: 0°C ~ 75°C

• OS Support: Windows, macOS, Linux, Android

• Dimensions: ---

Manufacture of Waveshare 4-way USB3.2 HUB Industrial Isolation

Manufacturer: Waveshare USB3.2 Gen1 HUB 4U , Wiki
