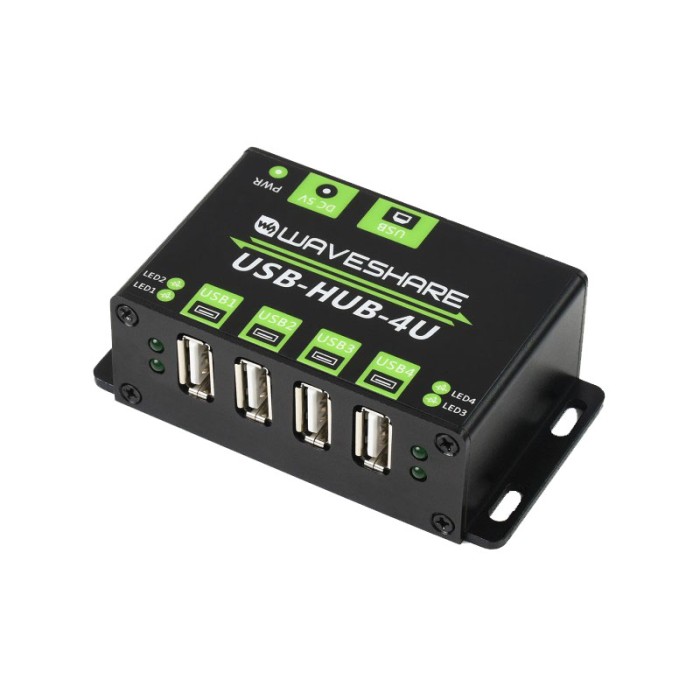

The Waveshare 4-way USB2.0 HUB Industrial Isolation is a durable and reliable solution for expanding USB connectivity in industrial settings. Supporting the USB 2.0 standard, it delivers data transfer rates of up to 480Mbps. The hub features four USB-A output ports, each operating at 5V and supporting up to 1.2A of current per port. The input voltage for the hub is 5V, supplied via a USB-B connector, and an additional DC 5V input is available for external power. It is compatible with a wide range of operating systems, including macOS, Linux, and Windows, ensuring seamless integration into various environments.
Specifications of Waveshare 4-way USB2.0 HUB Industrial Isolation
-
Standard: USB 2.0
-
Data Rate: Up to 480Mbps
-
USB HUB Input Voltage: 5V
-
USB HUB Input Connector: USB-B
-
USB Output:
-
Voltage: 5V
-
Current: Up to 1.2A per port
-
Connector: USB-A
-
-
External Power:
-
Voltage: DC 5V
-
Connector: DC jack
-
-
Operating Environment: -40°C ~ 85°C
-
OS Support: macOS (8.6 or above), Linux (2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP
-
Dimensions: ---
Manufacture of Waveshare 4-way USB2.0 HUB Industrial Isolation
Manufacturer: Waveshare USB HUB 4U , wiki
