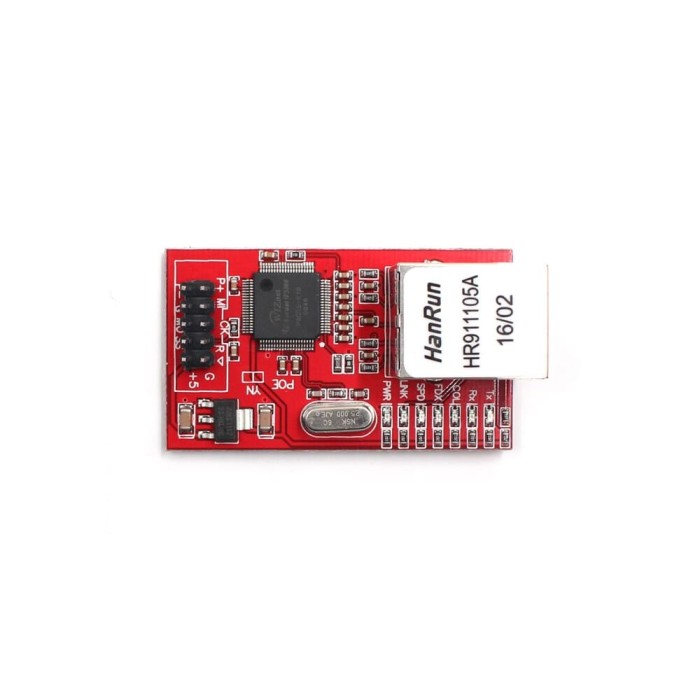

W5100 TCP/IP Ethernet Network Module
$7.9500
In stock
SKU
COM-04-012
Volume discounts:
- +25 4 % $7.6300
- +50 6 % $7.4700
- +100 8 % $7.3200
- +300 10 % $7.1600
- +500 12 % $7.0000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Industrial Grade Isolated POE Power Supply Module Previous
The W5100 TCP/IP Ethernet Network Module is a highly versatile and essential module for all your networking needs. With its compact size and easy installation, this module provides a seamless and reliable connection to the internet or local network. It has a built-in Ethernet controller and supports up to 4 sockets, making it ideal for various applications such as IoT projects and remote monitoring.
Equipped with a high-performance microcontroller and reliable components, the W5100 TCP/IP Ethernet Network Module offers stable and efficient operation for your projects. It also has a built-in memory buffer, reducing the load on your main device and ensuring smooth data transmission. With its affordable price and versatile use, this module is a top choice for all your networking needs. Upgrade to the W5100 TCP/IP Ethernet Network Module and stay connected with ease.
Specification of W5100 TCP/IP Ethernet Network Module:
- Chip: WIZNET W5100
- Interface: SPI (Serial Peripheral Interface)
- Ethernet Speed: 10/100 Mbps
- Operating Voltage: 3.3V
- Dimensions: Compact form factor (XX mm x XX mm)
- Operating Temperature: -40°C to +85°C
Features of W5100 TCP/IP Ethernet Network Module:
- Supports 10/100 Base
- Supports half/full duplex operation
- Supports auto-negotiation and auto cross-over detection
- IEEE 802.3/802.3u Compliance
- Supports network status indicator LEDs
- Includes Hardware Internet protocols: TCP, IP Ver.4, UDP, ICMP, ARP, PPPoE, IGMP
- Includes Hardware Ethernet protocols: DLC, MAC
- Supports 4 independent connections simultaneously
- Supports MCU bus Interface and SPI Interface
- Supports Direct/Indirect mode bus access
- Supports Socket API for easy application programming
- Temperature : 0 ~ 70°C (Operation), -40 ~ 85°C (Storage)
- Size: 51.7 x 30.0 mm (±0.5mm)
- Supply Voltage: 3.3V with 5V I/O signal tolerance
| Platform | Arduino Mega, Arduino Uno, Arduino Nano |
|---|---|
| Interface Type | SPI, Parallel, Ethernet |
| Operating Voltage (V) | 3.3V |
| Operating Temp (°C) | 0 to 70 |
| Dimensions (mm) | 51.7 x 30.0 mm |
| Mounting Type | THT |
| Network Protocol | TCP/IP, UDP |
| Data transmission rate | 10/100 Mbps |
| Standard | IEEE 802.3, IEEE 802.3u |
| Voltage Levels | 5V |
| Chipset | WIZNET W5100 |
| Pins | 20 |
| Indicator LEDs | Network status indicator LEDs |
