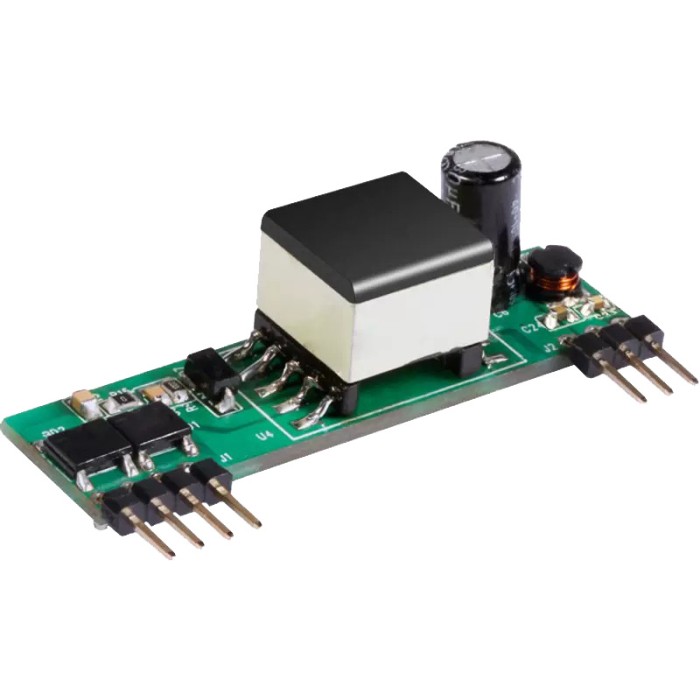

Industrial Grade Isolated POE Power Supply Module

The PoE5300** Power-over-Ethernet (PoE+) module is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3at PoE standard.

The PoE5300 has been designed to extract power from Power Sourcing Equipment (PSE) over a conventional twisted pair Category 5 Ethernet cable. The module input conforms to the IEEE803.2at standard for signature recognition and class programming.

The high efficiency DC/DC converter operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier.

Key Features of Industrial Grade Isolated POE Power Supply Module

• IEEE802.3at and IEEE802.3af compliant
• Maximum 30W peak output power*
• Small Single In-Line package（SIP）size –
• 57.3mm (L) x 14mm (H)
• Overload, short-circuit and thermal
• protection
• Adjustable output voltage
• Minimal (low cost) external components
• Low output ripple & noise
• High efficiency DC/DC converter
• 1500Vdc isolation (input to output)

Specifications of Industrial Grade Isolated POE Power Supply Module

• Output Voltage: 5,12,24V (PoE5305, PoE5300, PoE5324 Respectively)
• Continuous Output Current: 4, 2, 1A( (PoE5305, PoE5300, PoE5324 Respectively)
• Line Regulation (Vin=36!57V, 50% load): 0.25,0.2,0.08% (PoE5305, PoE5300, PoE5324 Respectively)
• Output Ripple and Noise at Max Load: 74, 86, 52 mVp-p (PoE5305, PoE5300, PoE5324 Respectively)
• Minimum Load: 150, 50, 50mA (PoE5305, PoE5300, PoE5324 Respectively)
• Isolation Voltage (I/O): 1500V)
