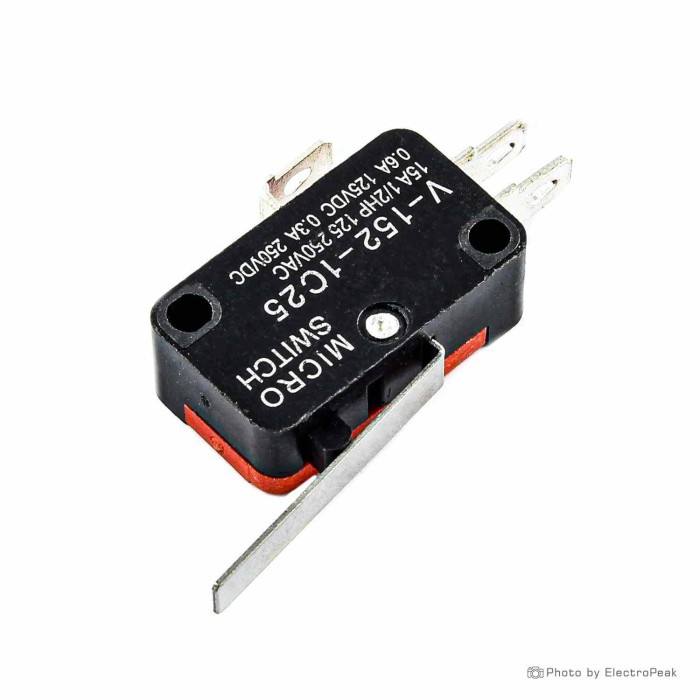

V-152-1C25 Microswitch Stroke Limit Switch
$0.1800
In stock
SKU
ELC-14-093
Volume discounts:
- +100 6 % $0.1700
- +1000 11 % $0.1600
V-152-1C25 Microswitch Stroke Limit Switch is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SMD Tactile Push Button - 6x6 mm Previous
V-152-1C25 Microswitch Limit Switch is a momentary microswitch with a short hinge roller lever actuator. It is designed with 1NO, 1NC (SPDT) contact configuration. The switch body uses a compact form factor and comes in red and black. This product page covers the key electrical, mechanical, and package details for the V-152-1C25 Microswitch Limit Switch.
Features of V-152-1C25 Microswitch Limit Switch
- Momentary actuator action
- Short hinge roller lever actuator
- SPDT contact configuration
- Plastic and metal construction
- Red and black body
- 5-piece package
Specifications of V-152-1C25 Microswitch Limit Switch
- Actuator Action: Momentary
- Actuator Type: Short Hinge Roller Lever
- Rating: 15A, 1/2HP, 125/250VAC
- Rating: 0.6A,125VDC; 0.3A, 250VDC
- Contact Configuration: 1NO,1NC(SPDT)
- Switch Body Size: ~2.8 x 1 x 1.6cm / 1.1" x 0.39" x 0.63" (L*W*H)
- Fixing Holes Dia: ~0.32cm / 0.13"
- Button Height: ~0.3cm / 0.12"
- Actuator Size: ~1.4 x 0.45cm / 0.55" x 0.18" (L*W)
- Terminal Blade Width: ~0.47cm / 0.19"
- Material: Plastic & Metal
- Main Color: Red & Black
- Package Content: 5 x Micro Switch
How to Use V-152-1C25 Microswitch Limit Switch
- Mount the switch using the fixing holes.
- Connect the terminal blades to the required circuit.
- Apply actuator movement to trigger the momentary switch action.
More Info
- Compact microswitch format for mechanical switching applications.
- Package includes 5 micro switches.
